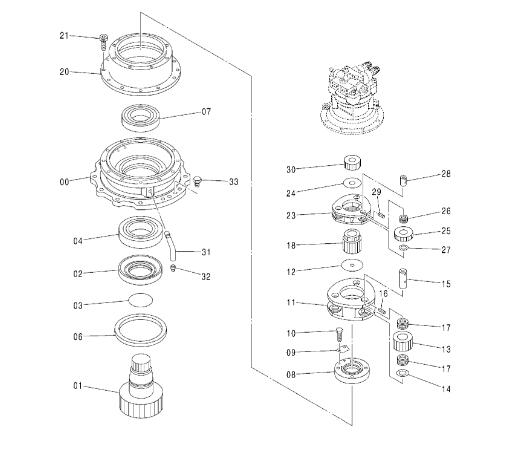

ENTIRE GROUP T.MISSION (SWING):
9260804 I[1] -
T.MISSION (SWING) 9262916 <for assembly of machine>
9262916[1] -
T.MISSION (SWING) <for transportation>
00.1033370[1] -
HOUSING
01.2053199[1] -
SHAFT;PROP.
02.3083742[1] -
SLEEVE
03.A811120[1] -
O-RING
04.4402481[1] -
BRG.;ROL.
06.4411535[1] -
SEAL;OIL
07.4402637 Y[1] -
BRG.;ROL. 4667150
07.4667150[1] -
BRG.;ROL.
08.3099830[1] -
NUT
09.4474191[1] -
PLATE;LOCK
10.J901016[2] -
BOLT
11.1031849[1] -
CARRIER
12.4187590[1] -
PLATE;THRUST
13.3099815[3] -
GEAR;PLANETARY
14.4336929[3] -
PLATE;THRUST
15.4488904[3] -
PIN
16.4027427[3] -
PIN;SPRING
17.4438593[6] -
BRG.;NEEDLE
18.3099795[1] -
GEAR;SUN
20.1032548[1] -
GEAR;RING
21.M341645[12] -
BOLT;SOCKET
23.1031817[1] -
CARRIER
24.4403371[1] -
PLATE;THRUST
25.3102045[3] -
GEAR;PLANETARY
26.4404506[3] -
BRG.;NEEDLE
27.4403082[3] -
PLATE;THRUST
28.4336923[3] -
PIN
29.4051262[3] -
PIN;SPRING
30.3084056[1] -
GEAR;SUN
31.3089362[1] -
PIPE
32.94-2012[1] -
PLUG
33.4445354[2] -
PLUG
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
