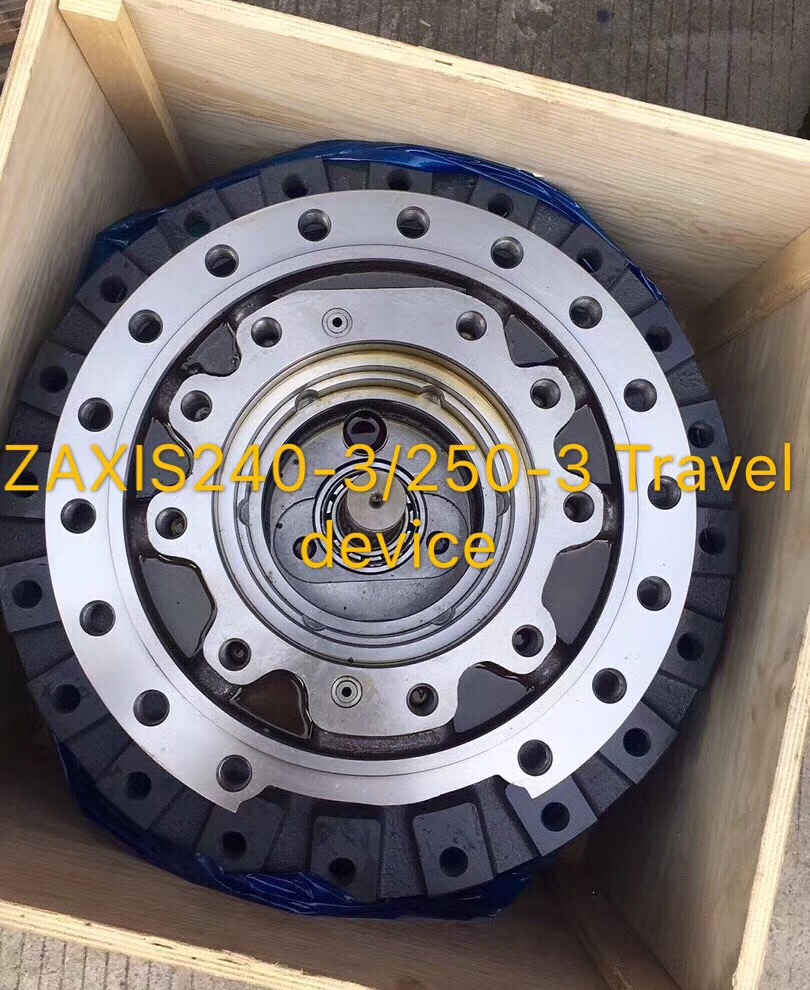

- 9243839 9256989 Excavator Final Drive Used For Hitachi Zaxis ZX240-3G Hydraulic Travel Device
| Excavator spare parts name | Travel reduction gear |
| Equipment Model | ZX240-3 |
| Parts Category | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
The ZX240-3G Travel Device, also known as the final drive or travel motor, is a critical component in the hydraulic system of a Hitachi ZX240-3G excavator. The travel device is responsible for providing the necessary power and torque to drive the excavator's tracks, enabling it to move forward, backward, and turn.
The travel device consists of a hydraulic motor and a reduction gearbox that work together to convert hydraulic pressure and flow into mechanical rotation, propelling the excavator's tracks. The rotation of the hydraulic motor drives the sprocket, which, in turn, moves the tracks and allows the excavator to maneuver on various terrains.
Hitachi designs its travel devices for durability and reliability in tough working conditions. Regular maintenance and proper care are essential to ensure the longevity and efficient performance of the travel device.
If you encounter any issues with the travel device on your Hitachi ZX240-3G excavator, it's essential to consult with a qualified technician or a Hitachi dealership for inspection, repair, or replacement. They will have the expertise and access to genuine Hitachi parts required to service the travel device correctly, ensuring the excavator operates smoothly and safely.
EXCAVATOR ZX200 . ZX240-3 . ZX240-3-AMS . ZX240-3-HCMC . ZX240-3F . ZX240-3G . ZX240-5G . ZX240LC-3G . ZX240LC-5G . ZX240N-3F-HCME . ZX240N-3FAMS . ZX250-3-AMS . ZX250H-3 . ZX250H-3-HCMC . ZX250H-3F . ZX250H-3G . ZX250H-5G . ZX250K-3 . ZX250K-3F . ZX250K-3G . ZX250K-5G . ZX250LC-3-HCMC . ZX250LC-3-HCME . ZX250LC-3F-HCME . ZX250LC-3G . ZX250LC-5B . ZX250LCH-3G . ZX250LCH-5G . ZX250LCK-3G . ZX250LCK-5G . ZX250LCN-3FAMS . ZX250LCN-3FHCME . ZX250LCN-5B . ZX260LCH-3G . Hitachi

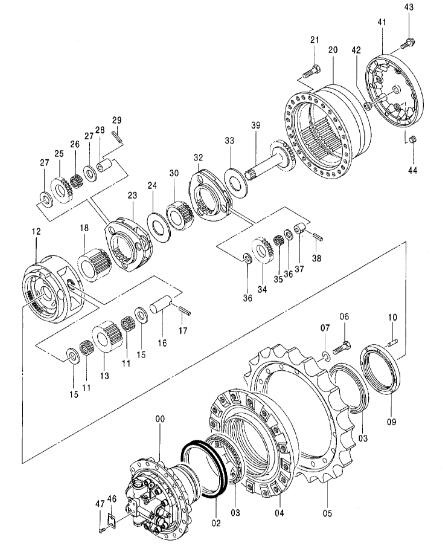

ENTIRE GROUP TRAVEL DEVICE:
9243839 I[1] -
TRAVEL DEVICE 9256989 <for assembly of machine> .
(9256989)[1] -
TRAVEL DEVICE <for transportation>
00.9242907 I[1] -
MOTOR;OIL 9257553 <for assembly of machine>
00.(9257553)[1] -
MOTOR;OIL <for transportation>
02.4634693[1] -
SEAL;GROUP
03.4246793[2] -
BRG.;ROL.
04.1032488[1] -
DRUM
05.1032489[1] -
SPROCKET
06.J932055[20] -
BOLT
07.A590920[20] -
WASHER;SPRING
09.3086531[1] -
NUT
10.4436242[1] -
PIN;KNOCK
11.4628766[6] -
BRG.;NEEDLE
12.1032487[1] -
CARRIER
13.3103053[3] -
GEAR;PLANETARY
15.4624830[6] -
PLATE;THRUST
16.4139975[3] -
PIN
17.4116309[3] -
PIN;SPRING
18.3103054[1] -
GEAR;SUN
20.1032490[1] -
GEAR;RING
21.J931640[28] -
BOLT
23.1032486[1] -
CARRIER
24.4183819[1] -
SPACER
25.3103052[3] -
GEAR;PLANETARY
26.4445529[3] -
BRG.;NEEDLE
27.4210851[6] -
PLATE;THRUST
28.4309995[3] -
PIN
29.4246358[3] -
PIN;SPRING
30.3082149[1] -
GEAR;SUN
32.1032485[1] -
CARRIER
33.4401293[1] -
SPACER
34.3103051[3] -
GEAR;PLANETARY
35.4406589[3] -
BRG.;NEEDLE
36.4148080[6] -
PLATE;THRUST
37.4210853[3] -
PIN
38.4173093[3] -
PIN;SPRING
39.2049585[1] -
SHAFT;PROP.
41.2051690[1] -
COVER
42.4478346[1] -
PIN;STOPPER
43.4609016[12] -
BOLT;SEMS
44.4245797[3] -
PLUG
46.+++++++[1] -
NAME-PLATE
47.M492564[2] -
SCREW;DRIVE
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
