FV30 ZX250L-5G ZX270-3 ZX270-HHE ZX280-5G ZX280LC-3 ZX280LC-3-HCME ZX280LC-5G ZX280LCH-3 ZX290L-5G ZX290LC-5B ZX290LCN-5B ZX330 ZX330-3 ZX330-3-HCMC ZX330-3G ZX330-5G ZX330LC-5G ZX350-3-AMS ZX350H ZX350H-3 ZX350H-3G ZX350H-5G ZX350K ZX350K-3 ZX350K-3G ZX350K-5G ZX350LC-3-HCME ZX350LC-5B ZX350LC-AMS ZX350LC-HCME ZX350LCH-5G ZX350LCK-5G ZX350LCN-5B ZX360H-3G ZX370MTH Hitachi

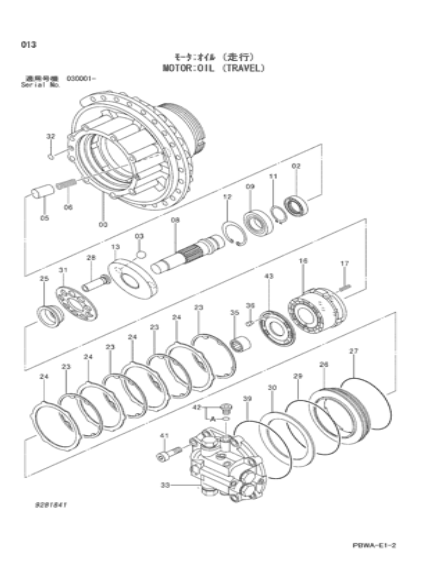

- Catalog parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| | 9281841 | [1] | MOTOR:OIL | I 9281842 <for assembly of machine> |
| | 9281842 | [1] | MOTOR;OIL | <for transportation> |
| 0 | 5207 | [1] | HOUSING | |
| 2 | 4396696 | [1] | SEAL;OIL | |
| 3 | 4355728 | [2] | BALL | |
| 5 | 4462038 | [1] | PISTON | |
| 6 | 4475147 | [1] | SPRING;COMPRES. | |
| 8 | 2047884 | [1] | SHAFT | |
| 9 | 4396755 | [1] | BRG.;ROL. | |
| 11 | 991345 | [1] | RING;RETAINING | |
| 12 | 959501 | [1] | RING;RETAINING | |
| 13 | 3107140 | [1] | PLATE;SWASH | |
| 16 | 2053333 | [1] | ROTOR | |
| 17 | 4468258 | [6] | SPRING;COMPRES. | |
| 23 | 3107797 | [4] | PLATE;FRICTION | |
| 24 | 3094376 | [4] | PLATE | |
| 25 | 4642740 | [1] | BUSHING | |
| 26 | 3094377 | [1] | PISTON | |
| 27 | 4468248 | [1] | O-RING | |
| 28 | 8107650 | [9] | PISTON | |
| 29 | 4468249 | [1] | O-RING | |
| 30 | 4468250 | [1] | SPRING;DISC | |
| 31 | 3107859 | [1] | RETAINER | |
| 32 | 4506415 | [2] | O-RING | |
| 33 | 9263062 | [1] | VALVE;BRAKE | I 9264565 <for assembly of machine> |
| 33 | 9264565 | [1] | VALVE;BRAKE | <for transportation> |
| 35 | 4472355 | [1] | BRG.;NEEDLE | |
| 36 | 4461910 | [1] | PIN;KNOCK | |
| 39 | 4468244 | [1] | O-RING | |
| 41 | M342056 | [8] | BOLT;SOCKET | |
| 42 | 9134112 | [1] | PLUG | |
| 42A. | 4506418 | [1] | O-RING | |
| 43 | 3103258 | [1] | PLATE;VALVE | |
| 42A. | 4506418 | [1] | O-RING | |
Hydraulic pump & Motor parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. The pump & Motor parts are built to fit to the genuine drive gearbox system.
2. The pump & Motor parts are supplied strictly according to the genuine parts catalog.
3. All the pump & Motor components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump & motor parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
