EXCAVATOR 336D 336D2 340D2 336F 340F
- More motors apply to machine
5110313 MOTOR GP-TRAVEL
4826394 MOTOR GP-SWING
4826393 MOTOR GP-SWING
4823609 MOTOR & MTG GP-SWING
5267423 MOTOR GP-GEAR
5200944 MOTOR GP-PISTON
5192479 MOTOR & MTG GP-TRAVEL
5192478 MOTOR & MTG GP-TRAVEL
5680534 MOTOR & MOUNTING GP
5680078 MOTOR & MOUNTING GP
5604745 MOTOR GP-PISTON
5603925 MOTOR AS
5596622 MOTOR AS-FAN
4826393 MOTOR GP-SWING
4823609 MOTOR & MTG GP-SWING
5689802 MOTOR & MTG GP-TRAVEL

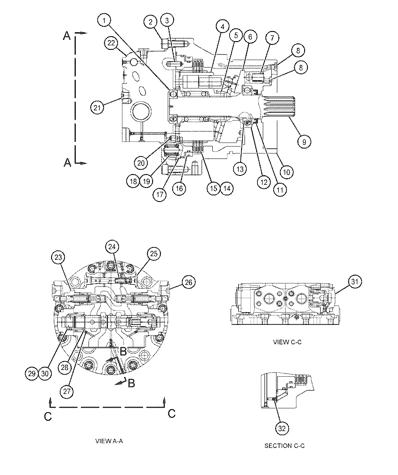

Pos. Part No Qty Parts name Comments
1. 536-2653 [1] BALL BEARING
2. 8T-2503 M [10] BOLT-SOCKET HEAD (M14X2X35-MM)
3. 536-2662 [4] PIN
4. 536-2640 [1] ROTATING GP-MOTOR
5. 536-2641 [1] RETAINER AS
6. 536-2650 [1] SWASHPLATE
7. 536-2663 [4] SPRING
8. 139-7308 [4] PLUG
9. 536-2649 [1] SHAFT
10. 536-2642 [1] BODY AS
11. 536-2655 [1] SEAL-LIP TYPE
12. 536-2652 [1] BALL BEARING
13. 536-2651 [2] BALL
14. 536-2656 [4] PLATE-FRICTION
15. 536-2657 [3] PLATE-SEPARATOR
16. 536-2659 [1] GUIDE-PISTON
17. 536-2658 [1] PISTON-BRAKE
18. 536-2661 [2] SPRING-BRAKE
19. 536-2660 [8] SPRING-BRAKE
20. 536-2654 [1] PIN
21. 279-4706 [2] PLUG
22. 536-2639 [1] HEAD-MOTOR
23. 568-3820 [2] VALVE AS-RELIEF
24. 7I-1041 [1] SPRING
25. 137-3687 [2] PLUG
26. 536-2664 [2] PLUG
27. 108-9151 [2] ORIFICE
28. 536-2643 [2] SEAT-SPRING
29. 536-2644 [2] SPRING
30. 536-2645 [2] SEAT-SPRING
31. 536-2637 [2] CAP AS
32. 536-2648 [3] ORIFICE
M METRIC PART
Hydraulic pumps are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. The pump & Motor parts are built to fit to the genuine drive gearbox system.
2. The pump & Motor parts are supplied strictly according to the genuine parts catalog.
3. All the pump & Motor components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump & motor parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
