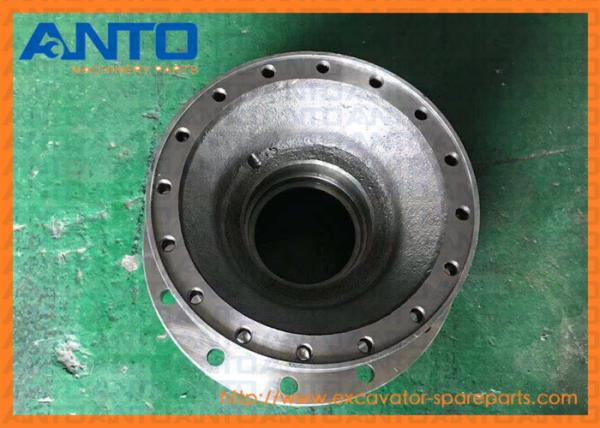

| Parts No | 05/903877 |
| Part name | housing |
| Applied excavator | JCB JS200 JS220 JS230 |
| Category group | Excavator swing gearbox |
| Place of origin | CHINA |
| Payment term | T/T, Western Union, MoneyGram |
| Packing | As request or standard packing |
| Delivery time | stock for urgent delivery |
| Means of transport | By sea/air, DHL |
- More housing applied to JCB machines
447/05404 Housing
JCB
447/05403 Housing
JCB
581/06201 Housing
JCB
477/00490 Housing roll bar
JCB
445/12600 Housing plate carrier assy 22T & 45T
JCB
445/12500 Housing plate carrier assy 31T & 45T
JCB
454/02901 Housing drivehead
JCB
448/10201 Housing outer
JCB
715/08200 Housing sumitomo & plugs
JCB
294/00936 Housing speaker
JCB
294/00943 Housing speaker
JCB
20/906402 Housing brake
JCB
- Other parts we can supply.
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Packaging Details
Plastic Bag & Plastic Box , Customize , Or customer's Brand
2. Delivery Time
1-2 day after received the payment
3. Type of Shipping :
EMS , DHL , TNT , UPS , FeDex , By air & By sea ..
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
1. All of our products are strictly inspected and tested before packing in factory.2. All of our products are strictly produced according to Genuine parts standard.
2. We have our own design and develop department, thus, we can produce the spare parts according to your samples.
3. We have a team of professional engineers to supply related technology help if customers needs our tech-assistant.
4. All of our products are of good quality, competitive price, comparing to other suppliers.
5. We have two big warehouses in our city, thus we have enough stock goods, which enable us make delivery in fastest efficiency.
6. We have completed transport system to shipped the goods in fast way.
7. Sample processing, material processing, material agent processing, drawing processing, OEM processing, and other processing are all available.
8. We have thousands of customers in different countries and regions around the world.

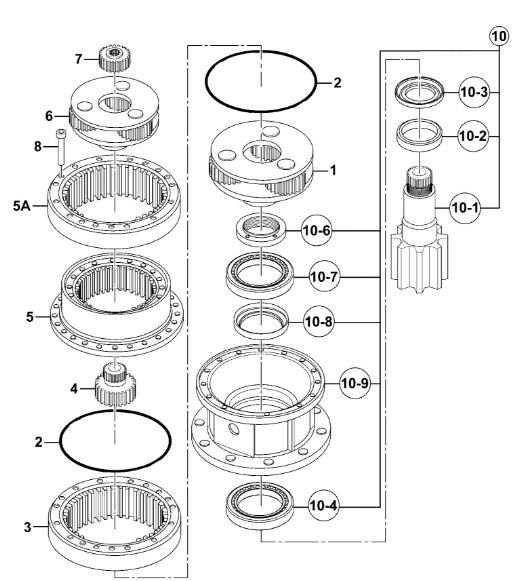

A. JRC0007 [1]
Gearbox swing
1. 05/903860 [1]
Gear reduction assembly
2. 05/902010 [2]
O Ring
3. 05/903862 [1]
Ring Toothed
4. 05/903863 [1]
Gear Sun
5. 05/903864 [1]
Cover
5A. 05/903865 [1]
Ring Toothed
6. 05/903866 [1]
Gear Reduction Assembly
7. 05/903867 [1]
Gear Sun
8. 05/903868 [16]
Screw M16 x 120mm
10. 05/903873 [1]
Gear output assembly
10-1. 05/903869 [1]
Shaft pinion 14 teeth
10-2. 05/903870 [1]
Spacer
10-3. 05/903871 [1]
Ring
10-4. 05/903872 [1]
Bearing
10-6. 05/903874 [1]
Nut
10-7. 05/903875 [1]
Bearing
10-8. 05/903876 [1]
Seal ring 100 x 130 x 12mm
10-8. 333/C7880 [1]
Seal 100x140x13 LARGER SIZE
10-9. 05/903877 [1]
Housing
1 . what kind of information I need to send you?
For different parts it need different information , for hydraulic pump need the nameplate and picture . For the final drive , need the number of the frame hole and sprocket hole ,and the inner diamter of the sprocket . But don't worry , if we need information , we will ask you to check .
2 . Do you have stock?
For our main products , our have stock for almost of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it .
3 . Can I get the picture of the part I need before payment ?
For almost parts , we can give you the picture of it , but some parts we don't have picture , but anyway will show you before the shipment .
4 . When will the delivery be arranged after the payment
After we received the money , we will arrange the shipment within 2 days .
5 . How can I do if there is something wrong with the items ?
First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item .
6 . What is your advantage products ?
Our advantage products are final drive / hydraulic pump / swing gearbox / travel gearbox / swing motor / hydraulic parts . If you need any parts for crawler excavator , you can ask us . We will try our best to find the parts what you need .
1. Quality stability .
2. Professional R&D team .
3. We have all Specifications of our products and can meet customers ’ product diversity needs .
4. We prefer to accept your lower MOQ in order to relieve your purchasing stress .
5. Our markets are widely distributed to North Europe , East Europe , West Europe , North America , South America , East Asia , Southeast Asia , Middle East , Austrilia , etc . and enjoy good reputation .
