EXCAVATOR 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 321D LCR 323D L 323D LN 323D SA
MOBILE HYD POWER UNIT 323D L 323D LN

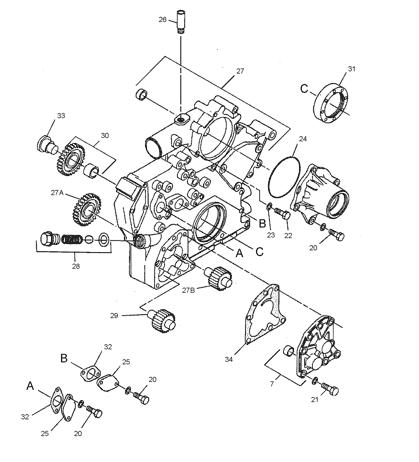

Number 27 on drawing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 222-8292 | [1] | POINTER | |
| 2 | 294-1731 | [1] | BOLT (M8X1.25X19.5-MM) | |
| 3 | 6V-8236 | [1] | PIN-SPRING | |
| 4 | 294-1732 | [1] | PLATE | |
| 5 | 6V-5215 M | [2] | BOLT (M8X1.25X16-MM) | |
| 6 | 297-7646 | [2] | BOLT (M8X1.25X95.5-MM) | |
| 7 | 178-6538 | [1] | COVER AS | |
| 8 | 5I-5597 | [6] | BOLT (M10X1.5-THD) | |
| 9 | 5I-7610 M | [1] | BOLT (M10X1.5X20-MM) | |
| 10 | 297-7647 | [6] | BOLT (M10X1.5X77-MM) | |
| 11 | 8T-4172 M | [2] | BOLT (M10X1.5X80-MM) | |
| 12 | 8T-6685 M | [4] | BOLT (M10X1.5X110-MM) | |
| 13 | 7X-0796 | [6] | LOCKWASHER | |
| 14 | 294-1733 | [1] | GASKET | |
| 15 | 294-1734 | [1] | GASKET | |
| 16 | 212-8571 | [1] | COVER | |
| 17 | 212-8572 | [1] | GASKET | |
| 18 | 196-8366 | [1] | BOLT | |
| 19 | 294-1735 | [5] | BOLT (M8X1.25X90.5-MM) | |
| 20 | 294-7251 M | [6] | BOLT AS | |
| 21 | 294-1726 M | [4] | BOLT (M10X1.5X37-MM) | |
| 22 | 096-9435 | [1] | PLUG | |
| 23 | 096-9532 | [1] | WASHER (15.8X22.5X2-MM THK) | |
| 24 | 096-9528 | [1] | SEAL-O-RING | |
| 25 | 6F-7556 | [2] | COVER | |
| 26 | 5I-7632 | [1] | PIPE | |
| 27 | 294-1727 | [1] | BODY AS | |
| 27A. | 294-1728 | [1] | GEAR (32-TEETH) | |
| 27B. | 125-2950 | [1] | GEAR AS (9-TEETH) | |
| | 195-8225 | [1] | CAP (MAIN BEARING) | |
| 28 | 5I-7559 | [1] | VALVE AS | |
| 29 | 5I-7558 | [1] | GEAR AS (9-TEETH) | |
| 30 | 294-1729 | [1] | GEAR AS (33-TEETH) | |
| 31 | 324-4223 | [1] | SEAL | |
| 32 | 6F-7557 | [2] | GASKET | |
| 33 | 5I-7683 | [1] | SPINDLE | |
| 34 | 178-6537 | [1] | GASKET | |
| | M | | METRIC PART | |
