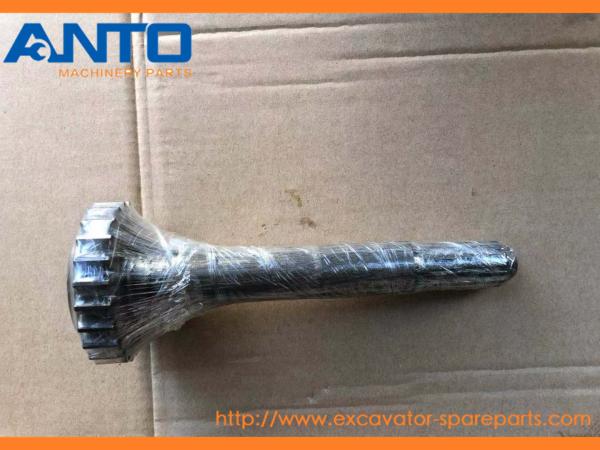

2022128 2022129 Prop Shaft & Planet Carrier Assy For EX120-1 Excavator Final Drive Parts

  • 1
  • 2
  • 3

Brand Name : OEM

Model Number : EX120-1

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, D/A, T/T, L/C, Western Union, MoneyGram

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Product name : Prop Shaft

Excavator model : EX120-1

parts number : 2022128 2022129

Warranty : 6 months

Category : Excavator Final Drive

Packing : Standard Wooden box

Contact Now

​

  • 2022128 2022129 Prop Shaft & Planet Carrier Assy Used For EX120-1 Excavator Final Drive Parts

  • Spec Sheet

Excavator spare parts name Prop Shaft
Equipment Model EX120-1
Parts Category excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days


  • Application

EX100 EX120 Hitachi

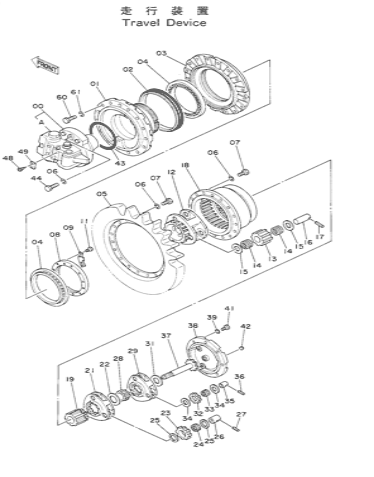

  • Parts Diagram

2022128 2022129 Prop Shaft & Planet Carrier Assy For EX120-1 Excavator Final Drive Parts

Pos. Part No Qty Parts name Comments
0 9065907 [1] MOTOR;OIL
0 9080113 [1] MOTOR;OIL
00-44. 9065935 [2] TRAVEL DEVICE ASS'Y
00-44. 9080069 [2] TRAVEL DEVICE ASS'Y Y 9096482
00-49. 9096482 [2] TRAVEL DEVICE ASS'Y
00A. 9065906 [1] VALVE;BRAKE
00A. 9080511 [1] VALVE;BRAKE
1 1009905 [1] HOUSING
2 4179741 [1] SEAL;GROUP
3 1009401 [1] FLANGE
4 4178201 [2] BRG.;ROL. Y 4240716
4 4240716 [2] BRG.;ROL.
5 1010325 [1] SPROCKET
6 A590916 [34] WASHER;SPRING
7 J931640 [32] BOLT
8 3033234 [1] NUT
9 4178862 [1] PLATE;LOCK
11 J901020 [2] BOLT
12 1009808 [1] CARRIER
13 3034195 [3] GEAR;PLANETARY
14 4183108 [6] BRG.;NEEDLE
15 4196487 [6] PLATE;THRUST
16 4183107 [3] PIN
17 4144020 [3] PIN;SPRING
18 1010014 [1] GEAR;RING
19 3033236 [1] GEAR;SUN
21 2021634 [1] CARRIER
22 4187683 [1] SPACER
23 3033238 [3] GEAR;PLANETARY
24 4113606 [3] BRG.;NEEDLE
25 4196489 [6] PLATE;THRUST
26 4178203 [3] PIN
27 4173093 [3] PIN;SPRING
28 3033235 [1] GEAR;SUN
29 2021633 [1] CARRIER
29 2022129 [1] CARRIER
31 4178208 [1] SPACER
32 3033237 [3] GEAR;PLANETARY
32 3034194 [3] GEAR;PLANETARY
33 4177007 [3] BRG.;NEEDLE
34 4192910 [6] PLATE;THRUST
35 4178202 [3] PIN
36 4169566 [3] PIN;SPRING
37 2022128 [1] SHAFT;PROP.
37 2022131 [1] SHAFT;PROP.
38 2022682 [1] COVER
38 2025960 [1] COVER
39 A590912 [8] WASHER;SPRING
41 M221228 [8] BOLT
42 4245797 [3] PLUG
42 94-2013 [2] PLUG
42 94-2013 [3] PLUG Y 4245797
43 4092970 [1] O-RING
44 J931670 [2] BOLT
48 M492564 [2] SCREW;DRIVE
49 3053559 [1] NAME-PLATE
60 J931670 [28] BOLT
61 A590916 [28] WASHER;SPRING

  • Description


The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
