LC00166 CX210 CX225 CX240 Sun Gear Shaft For Excavator Final Drive Parts

Product Categories
Guangzhou Anto Machinery Parts Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

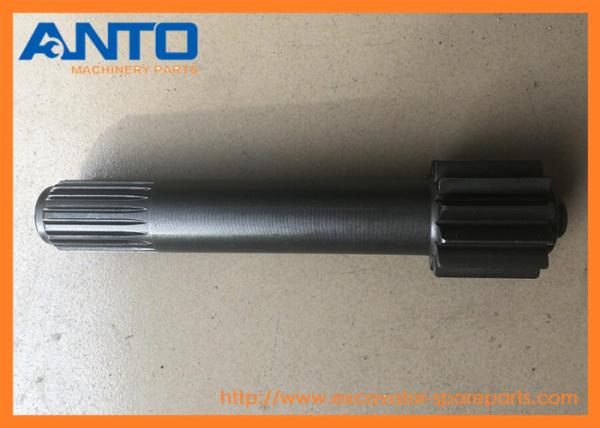

LC00166 CX210 CX225 CX240 Sun Gear Shaft For Excavator Final Drive Parts

  • 1
  • 2
  • 3

Brand Name : OEM

Model Number : CX210 CX225 CX240

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, D/A, T/T, L/C, Western Union, MoneyGram

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Product name : Sun gear

Excavator model : CX210 CX225

parts number : LC00166

Warranty : 6 months

Category : Excavator Final Drive

Packing : Standard Wooden box

Contact Now

​

  • LC00166 CX210 CX225 CX240 Sun Gear Shaft Used For Excavator Final Drive Parts


  • Spec Sheet

Excavator spare parts name Sun gear
Equipment Model CX210 CX225 CX240
Parts Category excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days


  • Application

HEAVY EQUIPMENT CX210 CX210LR CX210N CX225SR CX240 CX240LR

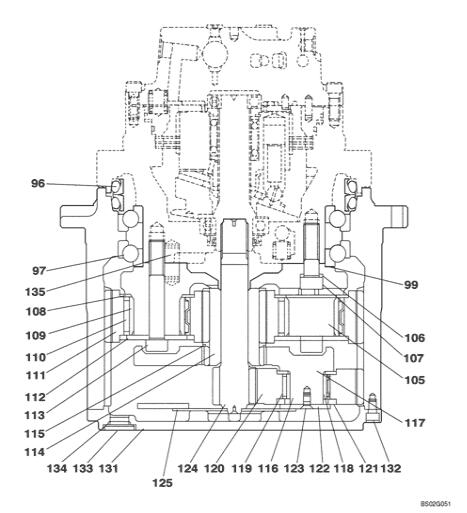

  • Parts Diagram

LC00166 CX210 CX225 CX240 Sun Gear Shaft For Excavator Final Drive Parts
Pos. Part No Qty Parts name Comments
. . KRA1426 [1] MOTO-REDUCTION GEAR SUM Travel; Incl. 96 - 135; Also Incl. Parts On Figure(s) 06-03, 06-04 Superseded by part number: KRA10120
. . KRA1860 [1] MOTO-REDUCTION GEAR SUM Travel; Incl. 96 - 135; Also Incl. Parts On Figure(s) 06-03, 06-04 Superseded by part number: KRA10120
96 NSS [2] NOT SOLD SEPARAT CON Seal, Floating (Included in Seal Kit LZ00652)
97 LB00548 [2] BEARING SUM
99 LH00254 [1] SHIM KIT SUM
105 LS00129 [1] HOLDER SUM
106 LA00702 [8] WASHER SUM
107 LA00703 [8] BOLT SUM
108 LR00583 [4] PLATE SUM
109 LB00549 [4] RING RACE SUM
110 LB00550 [4] BEARING SUM
111 LC00163 [4] SUN GEAR SUM
112 LR00584 [4] PLATE SUM
113 LA00704 [4] BOLT SUM
114 LC00164 [1] SUN GEAR SUM
115 LA00705 [1] RING, SNAP SUM RING SNAP
116 LS00130 [1] HOLDER SUM
117 LR00585 [3] PLATE SUM
118 LB00551 [3] RING RACE SUM
119 LB00552 [3] BEARING SUM
120 LC00165 [3] SUN GEAR SUM
121 LR00586 [3] PLATE SUM
122 LR00587 [1] PLATE SUM
123 LV00029 [3] SCREW SUM
124 LC00166 [1] SUN GEAR SUM
125 LR00588 [1] DISC SUM
131 LW005570 [1] COVER SUM Replaces LW00316 Superseded by part number: LW006290
132 108R010Z016N [16] BOLT SUM
133 165681A1 [3] PLUG SUM
134 154503A1 [3] O-RING SUM
135 160104A1 [4] PIN SUM
. . LZ00652 [1] SEAL KIT SUM Floating; Incl Ref 96, 134 Superseded by part number: LZ010600

  • Description


The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
