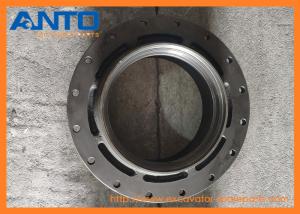

267-6879 324E 324D Gearbox Housing For Excavator Final Drive Parts

Brand Name : OEM

Model Number : 324D

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, D/A, T/T, L/C, Western Union, MoneyGram

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Product name : Gearbox Housing

Excavator model : 324E 324D

parts number : 267-6879

Warranty : 6 months

Category : Excavator Final Drive

Packing : Standard Wooden box

Contact Now

​

  • 267-6879 324E 324D Gearbox Housing Used For Excavator Final Drive Parts


  • Spec Sheet

Excavator spare parts name Gearbox housing
Equipment Model 322C 324D 324E
Parts Category excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days


  • Application

EXCAVATOR 322C 324D 324D L 324D LN 324E 324E L 324E LN 326D L
MOBILE HYD POWER UNIT 324D LN

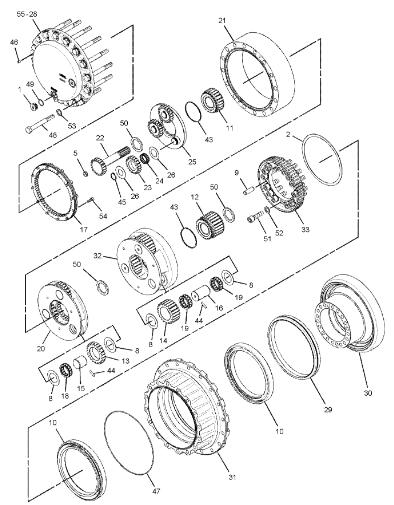

  • Parts Diagram

267-6879 324E 324D Gearbox Housing For Excavator Final Drive Parts

Pos. Part No Qty Parts name Comments
1 3E-2338 [2] PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
2 267-6863 B [1] SHIM (0.75-MM THK)
7Y-0752 B [1] SHIM (0.8-MM THK)
267-6864 B [1] SHIM (0.85-MM THK)
267-6865 B [1] SHIM (0.9-MM THK)
267-6866 B [1] SHIM (0.95-MM THK)
7Y-0753 B [1] SHIM (1-MM THK)
267-6867 B [1] SHIM (1.2-MM THK)
267-6868 B [1] SHIM (1.4-MM THK)
7Y-0754 B [1] SHIM (1.6-MM THK)
267-6869 B [1] SHIM (1.8-MM THK)
267-6870 B [1] SHIM (2-MM THK)
267-6871 B [1] SHIM (2.3-MM THK)
5 094-0578 B [1] PLATE (8-MM THK)
094-0579 B [1] PLATE (9-MM THK)
094-0580 B [1] PLATE (10-MM THK)
8 094-1528 [12] WASHER (53X84X1-MM THK)
9 114-1540 [4] PIN-DOWEL
10 333-2914 [2] BALL BEARING
11 169-5589 [1] GEAR-SUN (24-TEETH)
12 169-5590 [1] GEAR-SUN (24-TEETH)
13 169-5592 [3] GEAR-PLANETARY (23-TEETH)
14 169-5593 [3] GEAR-PLANETARY (23-TEETH)
15 169-5601 [3] SHAFT-PLANETARY
16 169-5602 [3] SHAFT-PLANETARY
17 169-5594 [1] GEAR-RING (65-TEETH)
18 333-2916 [3] BEARING AS
19 333-2917 [6] BEARING AS
20 191-2571 [1] CARRIER-PLANETARY
21 191-2676 [1] GEAR-RING (72-TEETH)
22 191-2674 [1] GEAR-SUN (25-TEETH)
23 191-2675 [3] GEAR-PLANETARY (20-TEETH)
24 333-2915 [3] BEARING AS
25 191-2678 [1] CARRIER AS
26 171-9297 [6] WASHER (34.3X62X1-MM THK)
28 199-4503 [1] COVER
29 207-1571 [1] SEAL GP-DUO-CONE
214-3570 [2] RING-TORIC
30 267-6797 [1] HOUSING-MOTOR
31 267-6879 [1] HOUSING (SPROCKET)
32 267-6799 [1] CARRIER-PLANETARY
33 267-6800 [1] GEAR-COUPLING
43 093-1731 [2] RING-RETAINING
44 095-0891 [6] PIN-SPRING
45 096-0433 [3] RING-RETAINING
46 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
47 171-9298 [1] SEAL-O-RING
48 179-8733 M [16] BOLT (M20X2.5X170-MM)
49 7M-8485 [2] SEAL-O-RING
50 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
51 7Y-5217 M [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
52 8T-3282 [16] WASHER-HARD (22X35X3.5-MM THK)
53 8T-4123 [16] WASHER (3.62X5.75X0.375-MM THK)
54 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
55 1U-8846 B SEALANT-GASKET
B USE AS REQUIRED
M METRIC PART

  • Description


The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
