1121119180 Excavator Engine Piston For Hitachi EX200-5 ZX200 JCB JS200 JS220

Brand Name : OEM

Model Number : EX200-5 ZX200 JS200

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C

Supply Ability : 568 PCS per week

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : Excavator Engine Parts

Machine Model : ISUZU

Parts No. : 1121119180

Parts name : Piston

Warranty : 3/6 Months

Package : standard export carton

Contact Now

1121119180 Piston ISUZU DIESEL ENGINE 6BG1 PARTS For Hitachi EX200-5 ZX200 JCB JS200 JS220

Spec Sheet

Excavator spare parts name	ISUZU 6BG1 Piston
Equipment Model	ISUZU 6BG1 Engine
Parts Category	Excavator engine parts
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

EX125WD-5 EX200-3C EX200-5 EX200-5 JPN EX200-5HG EX200-5HHE EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200LC-5HHE EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX210MT-5 JPN EX225USR(LC) EX225USRK(LC) HC1110 HR1200S-5 HR320G-5 HR900S HR900S-5 HR900SM MA145-5 RX2300 SR-G2000 SR-P1200

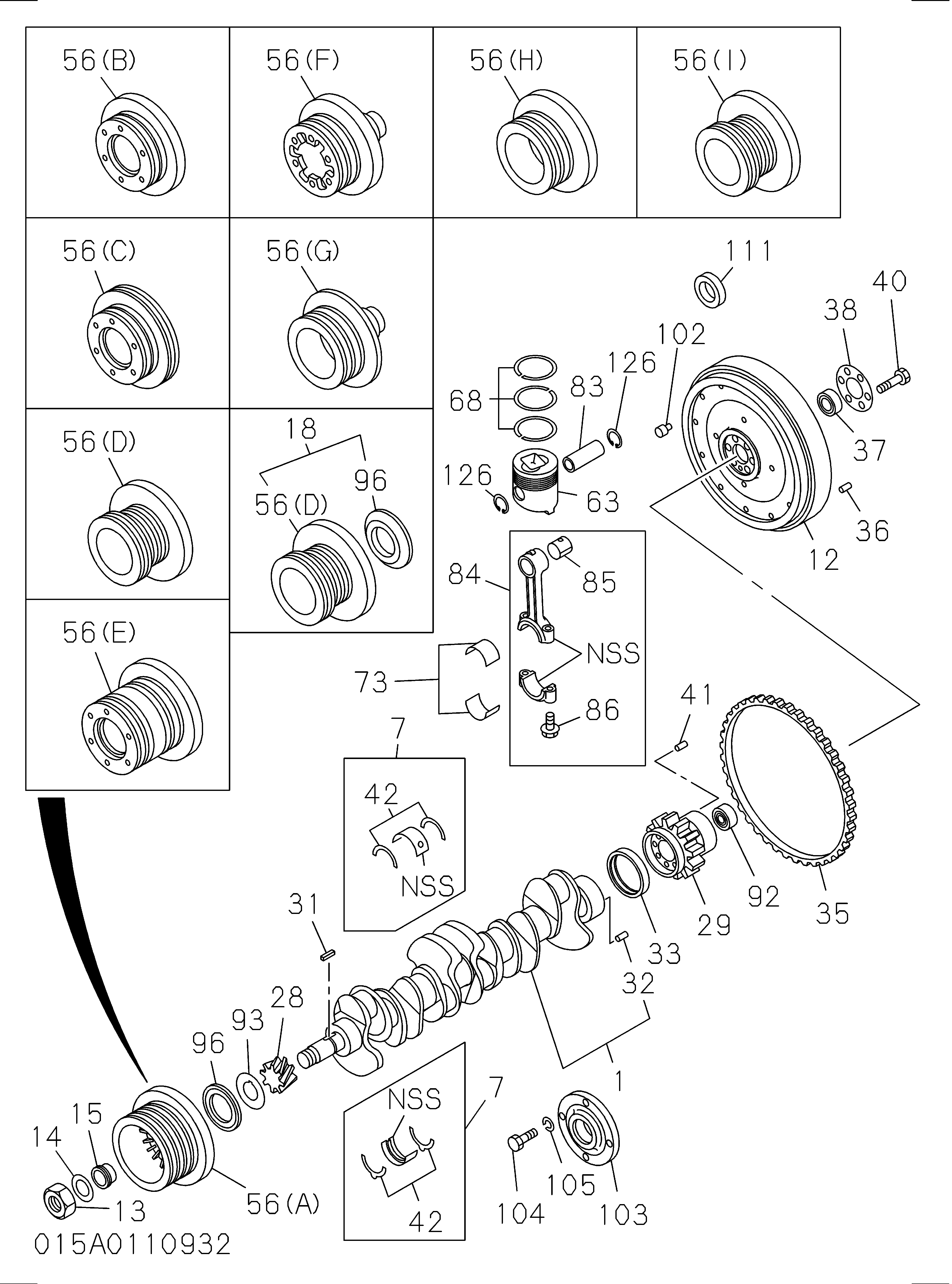

Parts Diagram

1121119180 Excavator Engine Piston For Hitachi EX200-5 ZX200 JCB JS200 JS220

Pos.	Part No	Qty	Parts name	Comments
1	1123104701	[1]	CRANKSHAFT
7	1115100743	[1]	METAL KIT; CRANKSHAFT,STANDARD
12	1123312761	[1]	FLYWHEEL
12	1123313773	[1]	FLYWHEEL
13	9098401071	[1]	NUT; STARTING HANDLE
14	9098514310	[1]	WASHER; PULLEY DAMPER
15	9123790450	[1]	BUSHING; TAPER,CR/SHF PULLEY
28	1125210080	[1]	GEAR; CR/SHF	A Z=25
28	8971379102	[1]	GEAR; CR/SHF	Z=25
31	5097380010	[1]	KEY; FEATHER,CR/SHF
32	9081512200	[1]	PIN; FLYWHEEL
33	5123190032	[1]	RING; WEAR,CR/SHF
35	1123330170	[1]	GEAR; RING	Z=129
35	8943931320	[1]	GEAR; RING	Z=129
38	5123360081	[1]	WASHER; FLYWHEEL
40	9920616380	[6]	BOLT; FLYWHEEL
42	1116800013	[2]	WASHER; THRUST,CR/SHF
056(A).	1123712480	[1]	PULLEY; CR/SHF DAMPER	3-GROOVE
056(A).	1123714880	[1]	PULLEY; CR/SHF DAMPER	3-GROOVE
63	1121117850	[6]	PISTON	A GRADE=AX<BR>ALSO INCLUDED IN LINER SET.
63	1121117860	[6]	PISTON	A GRADE=CX<BR>ALSO INCLUDED IN LINER SET.
63	1121119190	[6]	PISTON	GRADE=AX<BR>ALSO INCLUDED IN LINER SET.
63	1121119200	[6]	PISTON	GRADE=CX<BR>ALSO INCLUDED IN LINER SET.
63	1121119170	[6]	PISTON	GRADE=AX<BR>ALSO INCLUDED IN LINER SET.
63	1121119180	[6]	PISTON	GRADE=CX<BR>ALSO INCLUDED IN LINER SET.
68	1121211150	[6]	RING SET; PISTON,STANDARD	ALSO INCLUDED IN LINER SET.
73	9122716080	[6]	METAL SET; CONN ROD,STANDARD
83	1122110332	[6]	PIN; PISTON	ALSO INCLUDED IN LINER SET.
84	1122301292	[6]	ROD ASM; CONN
85	1122510320	[6]	BUSHING; CONNROD
86	1122350271	[12]	BOLT; CONNROD	M20X49.5
93	1123620031	[1]	THROWER; OIL,CR/SHF
96	5123620031	[1]	THROWER; DUST,CR/SHF
126	8941075751	[12]	RING; SNAP,PISTON PIN	ALSO INCLUDED IN LINER SET.
126	8941075751	[12]	RING; SNAP,PISTON PIN	ALSO INCLUDED IN LINER SET.

Description

Engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.

Advantage

1. The engine parts are built to fit to the genuine engine system.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the engine parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of engine parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
