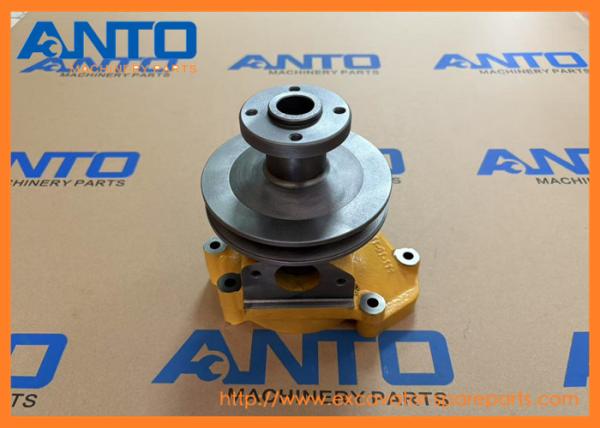

• 6141-61-1200 6141611201 Water Pump KOMATSU Bulldozer Spare Parts For 4D92-1A D20A-3

• Specification

Name	Water Pump
Parts No	6141-61-1200 6141611201
Engine Model	4D92-1A 4D92-1B
Category	Water Pump And Cooling Fan
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Function

The water pump serves as a key part of the engine cooling system. Its main task is to pump coolant, forcing it through the radiator, engine block, and relevant cooling channels. As the thermostat operates, the water pump enables coolant to circulate in the large loop of the cooling system to prevent the engine from overheating.

• Compatible models

• More other water pump parts fit for KOMATSU machine

6138-62-1500 WATER PUMP ASS'Y

SA6D110

6631-62-1013 WATER PUMP ASS'Y

NTO

EA4892175 WATER PUMP

WB91R, WH609

6212-62-2200 WATER PUMP ASS'Y

SDA6D140E

195-04-X1000 WATER SEPARATOR G.

D375A, SA6D170

OT507521 WATER BOTTLE

PC240

266-80-43000 WATER PUMP ASS'Y

JV25

6144-61-1100 WATER PUMP ASS'Y

4D94

6144-61-1101 WATER PUMP ASS'Y

4D94

6141-61-1300 WATER PUMP ASS'

4D92

6138-61-1100 WATER PUMP ASS'Y,(WITH NON HARDENING PULLEY)

SA6D110

6141-61-1102 WATER PUMP ASS'

4D92

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	6141-61-1200	[1]	WATER PUMP ASS'Y Komatsu China
			["SN: 33517-UP"] analogs:["6141611201"] |$0.
	6141-61-1102	[1]	WATER PUMP ASS'Y Komatsu China
			["SN: 11008-33516"] |$1.
	6141-61-1300	[1]	WATER PUMP ASS'Y,(TRIMMING SPEC.)(4D92-1B) Komatsu China
			["SN: 56108-56110"] |$2.
1.	6141-61-1111	[1]	HOUSING Komatsu China
			["SN: 11008-UP"]
2.	6140-61-1160	[1]	O-RING (K2) Komatsu	0.005 kg.
			["SN: 11008-UP"]
3.	6140-61-1170	[1]	RING Komatsu	0.1 kg.
			["SN: 11008-UP"]
4.	6140-61-1180	[1]	COVER Komatsu China
			["SN: 11008-UP"]
4.	6140-61-1191	[1]	COVER,(TRIMMING SPEC.)(4D92-1B) Komatsu China
			["SN: 56108-56110"]
5.	6140-61-1311	[1]	SHAFT Komatsu China
			["SN: 11008-UP"]
6.	6140-61-1910	[1]	CLIP Komatsu China
			["SN: 11008-UP"]
7.	6140-61-1331	[1]	IMPELLER Komatsu China
			["SN: 11008-UP"]
8.	6140-61-1510	[1]	SEAL, WATER (K2) Komatsu China
			["SN: 11008-UP"] analogs:["6140611511"]
9.	6141-61-3220	[1]	PULLEY Komatsu China
			["SN: 33517-UP"] analogs:["6141611311"]
9.	6141-61-3210	[1]	PULLEY Komatsu China
			["SN: 11008-33516"]
10	6140-61-1810	[1]	GASKET (K2) Komatsu China
			["SN: 11008-UP"]
11	6140-61-1820	[2]	GASKET (K2) Komatsu China
			["SN: 11008-UP"]
12	01010-30845	[2]	BOLT Komatsu China
			["SN: 11008-UP"] analogs:["4700567X", "01010E0845", "0101060845"]
13	01124-30855	[1]	STUD Komatsu China
			["SN: 33517-UP"]
13	01010-30860	[1]	BOLT Komatsu	0.029 kg.
			["SN: 11008-33516"]
14	01124-30860	[1]	STUD Komatsu China
			["SN: 33517-UP"]
14	01010-30865	[1]	BOLT Komatsu China
			["SN: 11008-33516"] analogs:["0100040865", "0100030865", "01010E0865", "0101060865", "1400918110", "38510127531"]
14A.	01580-00806	[2]	NUT Komatsu	0.005 kg.
			["SN: 33517-UP"]
15	01602-00825	[4]	WASHER Komatsu	0.004 kg.
			["SN: 11008-UP"] analogs:["0160220825", "0231011020", "6124613790"]
16	600-613-0383	[1]	FAN Komatsu China
			["SN: 48294-UP"] analogs:["6006130380", "6006130381", "6006130382"]
16	600-613-0382	[1]	FAN Komatsu China
			["SN: 19281-48293"] analogs:["6006130380", "6006130381", "6006130383"]
16	600-613-0381	[1]	FAN Komatsu China
			["SN: 13983-19280"] analogs:["6006130380", "6006130383", "6006130382"]
16	600-613-0380	[1]	FAN Komatsu China
			["SN: 11008-13982"] analogs:["6006130381", "6006130383", "6006130382"]
16	600-615-0382	[1]	FAN,(SUCTION TYPE) Komatsu China
			["SN: 11008-UP"] analogs:["6006150381"]
17	01010-30825	[4]	BOLT Komatsu	0.015 kg.
			["SN: 48294-UP"] analogs:["01010E0825"]
17	01010-30820	[4]	BOLT Komatsu	0.013 kg.
			["SN: 11008-48293"] analogs:["01010E0820"]
18A.	6141-61-3250	[1]	PLATE Komatsu China
			["SN: 48294-UP"] analogs:["6144653250"]
19	6141-61-6280	[1]	PIPE,(4D92-1A) Komatsu China
			["SN: ..-UP"] analogs:["6141616281"]
19	6141-61-6213	[1]	PIPE,(4D92-1A) Komatsu China
			["SN: .-.."] analogs:["6141616211", "6141616212"]
19	6141-61-6212	[1]	PIPE,(4D92-1A) Komatsu China
			["SN: 12807-."] analogs:["6141616211", "6141616213"]
19	6141-61-6211	[1]	PIPE,(4D92-1A) Komatsu China
			["SN: 11008-12806"] analogs:["6141616213", "6141616212"]
19	6141-61-6420	[1]	PIPE,(4D92-1B) Komatsu China
			["SN: .-UP"]
19	6141-61-6412	[1]	PIPE,(4D92-1B) Komatsu China
			["SN: 14647-."] analogs:["6141616411", "6141616410"]
19	6141-61-6411	[1]	PIPE,(4D92-1B) Komatsu China
			["SN: 14355-14646"] analogs:["6141616410", "6141616412"]
19	6141-61-6410	[1]	PIPE,(4D92-1B) Komatsu China
			["SN: 11008-14354"] analogs:["6141616411", "6141616412"]
20	6141-61-6810	[1]	GASKET (K2) Komatsu	0.003 kg.
			["SN: 11008-UP"]
21	01010-30822	[2]	BOLT,(4D92-1A) Komatsu	0.014 kg.
			["SN: 12807-UP"] analogs:["0100030822", "0101080822"]
23	6140-11-6310	[1]	THERMOSTAT Komatsu OEM	0.11 kg.
			["SN: 11008-UP"] analogs:["6004216110"]
24	6140-11-6331	[1]	GASKET (K1) Komatsu	0.003 kg.
			["SN: 27151-UP"]
24	6140-11-6330	[1]	GASKET Komatsu	0.003 kg.
			["SN: 11008-27150"] analogs:["6140116331"]
25	6140-11-6460	[1]	HOUSING Komatsu China
			["SN: 11008-UP"] analogs:["6142116460"]
26	6141-11-6420	[1]	SOCKET Komatsu China
			["SN: 11008-UP"]
27	01010-30835	[2]	BOLT Komatsu	0.019 kg.
			["SN: 11008-UP"] analogs:["01010E0835"]
29	01641-20812	[2]	WASHER Komatsu	0.005 kg.
			["SN: 11008-UP"] analogs:["YM22117080000"]
30	6140-11-6430	[1]	GASKET (K1) Komatsu	0.001 kg.
			["SN: 11008-UP"]
31	01010-30870	[2]	BOLT Komatsu China
			["SN: 11008-UP"] analogs:["0101060870", "01010E0870"]
33	6140-11-6442	[1]	GASKET (K1) Komatsu	0.012 kg.
			["SN: 17400-UP"]
33	6140-11-6441	[1]	GASKET Komatsu	0.012 kg.
			["SN: 13899-17399"] analogs:["6140116442"]
33	6140-11-6440	[1]	GASKET Komatsu	0.012 kg.
			["SN: 11008-13898"] analogs:["6140116442"]
36	04120-21746	[1]	V-BELT,(4D92-1A) Komatsu	0.259 kg.
			["SN: .-UP"]
36	04120-01723	[1]	V-BELT,(4D92-1A) Komatsu	0.259 kg.
			["SN: 41020-."] analogs:["0412021746"]
36	600-736-5311	[1]	V-BELT,(4D92-1A) Komatsu	0.259 kg.
			["SN: 33517-41019"] analogs:["0412021746"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

Product Tags:

Komatsu bulldozer water pump



D20A-3 bulldozer spare parts



4D92-1A water pump replacement



6141-61-1200 6141611201 Water Pump KOMATSU Bulldozer Spare Parts For 4D92-1A D20A-3 Images
