• 7Y1427 7Y-1427 Planetary Gear Excavator Final Drive Fitting For 318B 320 L 320B 320N

• Specification

Application	C A T excavator final drive
Name	Planetary gear
Parts No	7Y1427 7Y-1427
Model	318B 320 L 320B 320N
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Function

1.Speed Reduction and Torque Increase: It can reduce the input rotational speed and increase the output torque. By utilizing the meshing relationship among the sun gear, planetary gears, and ring gear, different transmission ratios can be obtained. According to the principle of gear transmission, when the power is input from the sun gear and output from the planetary carrier with the ring gear fixed, a reduction - speed and torque - increasing effect can be achieved, meeting the requirement of low - speed and high - torque during the excavator's operation, such as in digging and lifting operations.

2.Power Shunt: The planetary gear can distribute the power from the engine to multiple planetary gears. These planetary gears share the load together, which makes the force on the main shaft balanced. This not only enhances the bearing capacity of the gear system but also is beneficial to improving the reliability and service life of the gear system, enabling the excavator to stably transmit power under heavy - load working conditions.

• Applicable models

EXCAVATOR 318B 320 L 320B 320N

• More gear parts supplied to C A T machine

7Y0674 GEAR-SUN

325 L, 330, 330 FM L, 330 L, OEMS

7Y0659 GEAR-PLANET

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0639 GEAR-SUN

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0673 GEAR-RING

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0641 GEAR-COUPLING

325 L, 330, 330 FM L, 330 L, OEMS

7Y0642 GEAR-RING

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

1107229 GEAR-RING

330B, 330B L, OEMS

1107231 GEAR-SUN

325C, 328D LCR, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

1107232 GEAR-SUN

330B, 330B L, OEMS

1107233 GEAR-PLANETARY

330B, 330B L, OEMS

7Y1504 GEAR-PLANETARY

330, 330 FM L, 330 L, 330C, 330D L, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L HVG, 349E L VG, 349F L, 350, OEMS

1695560 GEAR-COUPLING

330C, 345B, 345B II, 345B II MH, 345B L, 350, OEMS

1252950 GEAR AS

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 3...

5I7558 GEAR AS

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320...

3689995 GEAR

311D LRR, 311F LRR, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, 315D L, 316E L, 318D L, 318D2 L, 318E L

2408362 GEAR & BEARING GP-SWING

308C, 308D, 308E, 308E CR, 308E SR, 308E2 CR

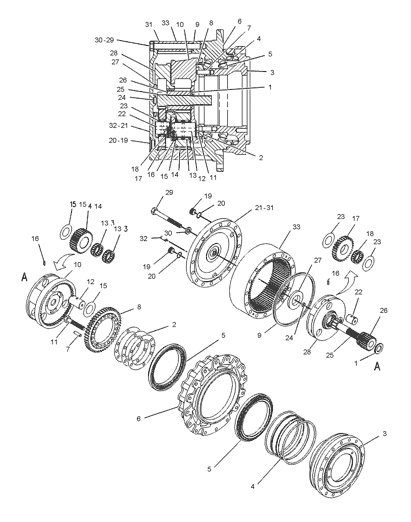

• Catalog part list

Pos.	Part No	Qty	Parts name	Comments
1	7Y-1434	[1]	SPACER (40X69.5X6-MM THK)
2	096-1773 B	[1]	SHIM (0.15-MM THK)
	096-1774 B	[1]	SHIM (0.3-MM THK)
	096-1775 B	[1]	SHIM (0.4-MM THK)
	096-1776 B	[1]	SHIM (0.5-MM THK)
	096-1777 B	[1]	SHIM (0.6-MM THK)
	096-1778 B	[1]	SHIM (0.7-MM THK)
	096-1779 B	[1]	SHIM (0.8-MM THK)
	096-1780 B	[1]	SHIM (1-MM THK)
	096-1781 B	[1]	SHIM (1.6-MM THK)
3	148-4716	[1]	HOUSING-MOTOR
4	114-1497	[1]	SEAL GP-DUO-CONE
5	168-8451	[2]	BALL BEARING
6	114-1486	[1]	HOUSING
7	114-1539	[6]	PIN-DOWEL
8	148-4715	[1]	GEAR-COUPLING (55-TEETH)
9	6D-0692	[1]	SEAL-O-RING
10	7Y-1433	[1]	CARRIER
11	6V-3303 M	[14]	BOLT (M16X2X60-MM)
12	7Y-0223	[3]	SHAFT-PLANETARY
13	094-1542	[6]	BEARING-ROLLER
14	7Y-1431	[3]	GEAR-PLANETARY (30-TEETH)
15	094-1528 M	[6]	WASHER (53X84X1-MM THK)
16	095-0891	[6]	PIN-SPRING
17	7Y-1428	[3]	GEAR-PLANETARY (32-TEETH)(32 TEETH)
18	094-0616	[3]	BEARING AS-ROLLER
19	3E-2338	[2]	PLUG-PIPE
20	7M-8485	[2]	SEAL-O-RING
21	7Y-1426	[1]	COVER
22	7Y-0225	[3]	SHAFT-PLANETARY
23	094-0611	[6]	WASHER (47.3X76X1-MM THK)
24	094-0580	[1]	PLATE (10-MM THK)
25	7Y-1427	[1]	GEAR-SUN (14-TEETH)(11 TEETH)
26	7Y-1430	[1]	GEAR-SUN (17-TEETH)
27	7Y-1558	[1]	SPACER (90X119.6X7.5-MM THK)
28	7Y-1432	[1]	CARRIER
29	7X-2568 M	[16]	BOLT (M20X2.5X180-MM)
30	8T-4123	[16]	WASHER (3.62X5.75X0.375-MM THK)
31	1U-8846 B		SEALANT-GASKET
32	095-1270 M	[2]	SETSCREW-SOCKET (M12X1.75X30-MM)(M12X1.75 THD)
33	7Y-1631	[1]	GEAR-RING
	B		USE AS REQUIRED
	M		METRIC PART

• Other hot selling parts

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft

2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y

3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y

4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder

5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve

6.Electrical parts: Wiring harness, Controller, Monitor

7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

Product Tags:

318B excavator final drive



320B planetary gear drive



excavator final drive with warranty



7Y1427 7Y-1427 Planetary Gear Excavator Final Drive Fitting For 318B 320 L 320B 320N Images
