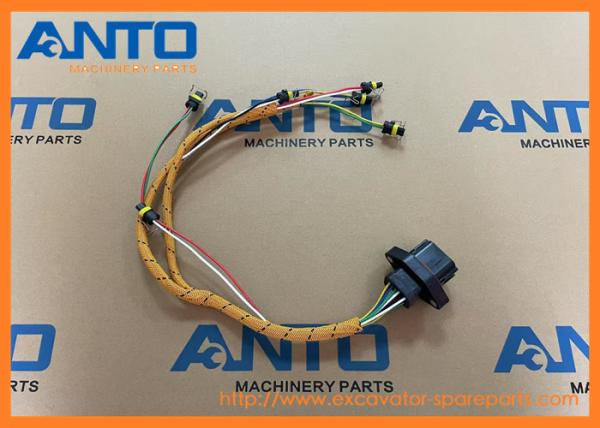

- 546-2154 419-0841 Wiring Harness Excavator Spare Parts Fitting For C9 330D 336D
| Name | Wiring Harness |
| Parts No | 546-2154 419-0841 |
| Machine Model | 330D 336D |
| Engine Model | C9 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
ENGINE C9 C.ater.pillar.
- More other harness parts fit for C A T machine
| 5395842 HARNESS AS-PLATFORM |
| Cat.erp.illar |
| |
| 5395841 HARNESS AS-CAB |
| Cat.erp.illar |
| |
| 5384096 HARNESS AS-CHASSIS |
| Cat.erp.illar |
| |
| 5367945 HARNESS AS-WIRING |
| Cat.erp.illar |
| |
| 5336308 HARNESS AS-PUMP |
| Cat.erp.illar |
| |
| 5286670 HARNESS AS-CONTROL |
| Cat.erp.illar |
| |
| 5558169 HARNESS AS-SENSOR |
| Cat.erp.illar |
| |
| 5531569 HARNESS AS-CHASSIS |
| Cat.erp.illar |
| |
| 5531568 HARNESS AS-CAB |
| Cat.erp.illar |
| |
| 5531567 HARNESS AS-CAB |
| Cat.erp.illar |
| |
| 5506558 HARNESS AS-SWITCH |
| Cat.erp.illar |

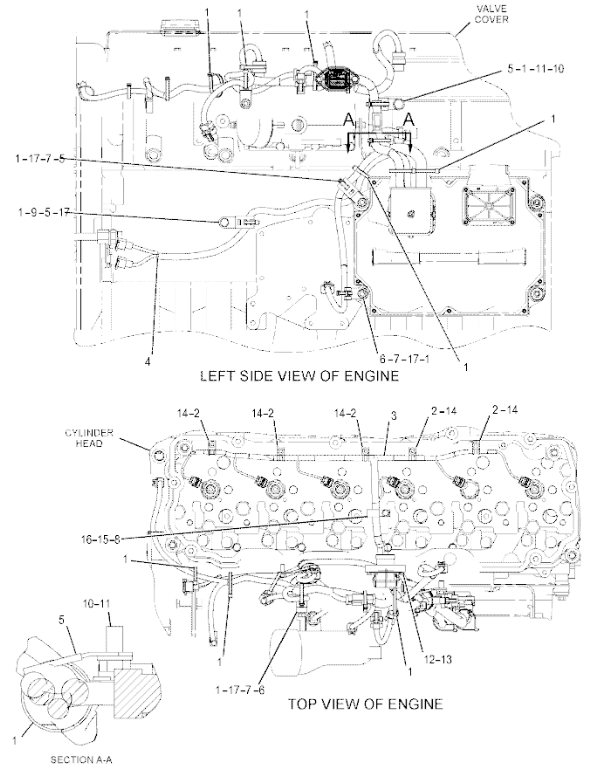

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 | [16] | STRAP-CABLE | |
| 2 | 439-4571 | [5] | CLIP (LOOP) | |
| 3 | 546-2154 CY | [1] | HARNESS AS-CONTROL | |
| 4 | 300-6790 Y | [1] | HARNESS AS-CONTROL | |
| 5 | 4P-7581 | [4] | CLIP (LADDER) | |
| 6 | 4P-8134 | [2] | CLIP (LADDER) | |
| 7 | 5P-7970 M | [3] | NUT (M8X1.25-THD) | |
| 8 | 6V-4369 | [1] | CLIP | |
| 9 | 6V-5217 M | [1] | BOLT (M8X1.25X20-MM) | |
| 10 | 6V-5839 | [2] | WASHER (11X21X2.5-MM THK) | |
| 11 | 6V-6317 M | [2] | BOLT (M10X1.5X20-MM) | |
| 12 | 7I-2272 M | [2] | BOLT (M5X0.8X12-MM) | |
| 13 | 8T-0328 | [2] | WASHER-HARD (5.5X10X1-MM THK) | |
| 14 | 440-0881 M | [5] | BOLT-SOCKET HEAD (M8X1.25-THD) | |
| 15 | 8T-4205 | [1] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 16 | 8T-5451 M | [1] | BOLT (M6X1X12-MM) | |
| 17 | 9M-1974 | [4] | WASHER-HARD (8.8X16X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE | |
| | M | | METRIC PART | |
| | Y | | SEPARATE ILLUSTRATION | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
