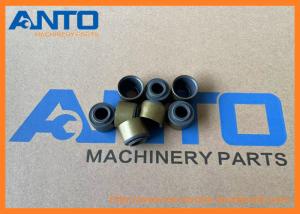

6240-11-1370 6240111370 Valve Seal Excavator Engine Parts For KOMATSU SAA6D170E

• 6240-11-1370 6240111370 Valve Seal Excavator Engine Parts Fit For KOMATSU SAA6D170E

• Specification

Application	KOMATSU excavator engine parts
Name	Valve Seal
Parts No	6240-11-1370 6240111370
Model	SAA6D170E
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Applicable models

ENGINES SAA6D170E
WHEEL LOADERS WA600 Komatsu

• More seal parts supplied to KOMATSU machine

705-17-03470 SEAL,BACK-UP

538, 542, 558, 568, D135A, D155A, D155AX, D275AX, D355C, D375A, D475A, D60P, D61E, D61EX, D63E, D65E, D65P, D68ESS, D70LE, D85A, D85E, D85ESS, D85P, F4EC, F5EC, F6EC, FD100, WA420, WA470

144-63-95170 SEAL,DUST (KIT)

558, 560B, 568, BM020C, CD110R, D40F, D41A, D41E, D41E6T, D41P, D41PF, D50A, D50P, D50PL, D53A, D53P, D57S, D58E, D58P, D60A, D60E, D60P, D60PL, D61E, PC130, PC160, PC190, WA250, WA250PZ

6732-81-8860 SEAL, O-RING

D51EX/PX, GD750A, HD785, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, PC400, PW180, PW200, PW220, S4D102E, S6D102E, SA6D102E, SA6D170E, SAA4D1...

6240-21-4250 SEAL,(FIG.A2210)

SA6D170E, SAA6D170E, WA600

6162-23-3520 SEAL,DUST (K2)

S6D170, S6D170E, SA12V140, SA6D170, SA6D170E, SAA6D170E

07012 10095 SEAL, OIL - SHAFT

542, 545, 558, 568, D55S, D65A, D65E, D65P, D65S, D75A, D75S, GD705A, GD725A, GH320, HD200, HD205, HD320, HD325, LW250L

07012-00050 SEAL

D21A, D21P, DCA, EGS650, EGS760, EGS850, GD30, S6D170, S6D170E, SA6D170, SA6D170E

07012-10095 SEAL,OIL (K4)

542, 545, 558, 568, D55S, D65A, D65E, D65P, D65S, D75A, D75S, GD705A, GD725A, GH320, HD200, HD205, HD320, HD325, LW250L

56B-07-12581 SEAL

HM300, HM350, HM400

22U-54-25620 SEAL

CD110R, PC128US, PC128UU, PC138, PC138US, PC228, PC228US, PC308

567-07-76140 SEAL

HD255

17M-54-47470 SEAL (BONDED)

D275AX

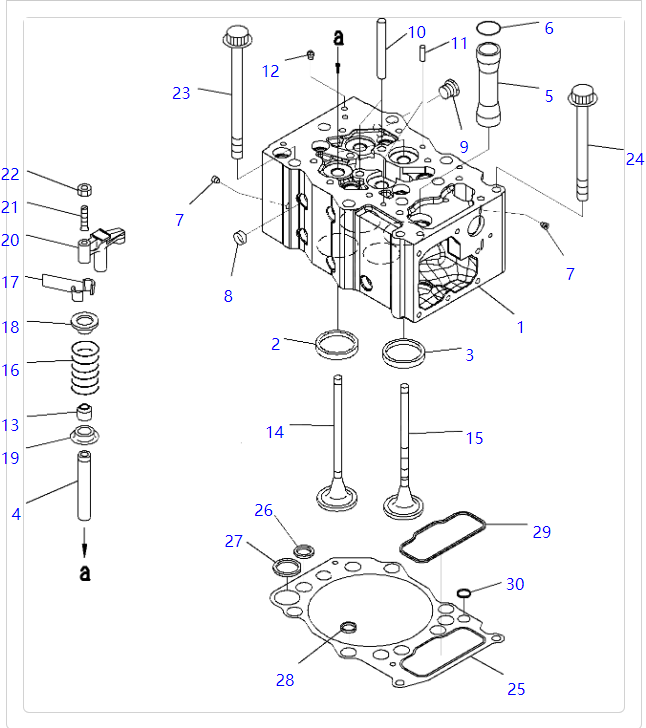

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	6245-11-1100	[6]	Cylinder Head Assembly Komatsu	45 kg.
			["SN: 510001-UP"] |1.
2.	6240-11-1330	[2]	Insert, Intake Valve Standard Komatsu	0.07 kg.
			["SN: 510001-UP"]
	6240-16-1330	[2]	Insert, Intake Valve Oversize 1.00mm Komatsu China
			["SN: 510001-UP"] |2.
	6240-17-1330	[2]	Insert, Intake Valve Oversize 0.75mm Komatsu	0.000 kg.
			["SN: 510001-UP"] |2.
	6240-18-1330	[2]	Insert, Intake Valve Oversize 0.50mm Komatsu	0.000 kg.
			["SN: 510001-UP"] |2.
	6240-19-1330	[2]	Insert, Intake Valve Oversize 0.25mm Komatsu	0.07 kg.
			["SN: 510001-UP"] |2.
3.	6245-11-1320	[2]	Insert, Exhaust Valve Standard Komatsu	0.5 kg.
			["SN: 510001-UP"]
	6245-16-1320	[2]	Insert, Exhaust Valve Oversize 1.00mm Komatsu China
			["SN: 510001-UP"] |3.
	6245-17-1320	[2]	Insert, Exhaust Valve Oversize 0.75mm Komatsu China
			["SN: 510001-UP"] |3.
	6245-18-1320	[2]	Insert, Exhaust Valve Oversize 0.50mm Komatsu China
			["SN: 510001-UP"] |3.
	6245-19-1320	[2]	Insert, Exhaust Valve Oversize 0.25mm Komatsu	0.1 kg.
			["SN: 510001-UP"] |3.
4.	6240-16-1340	[4]	Guide, Valve Komatsu	0.143 kg.
			["SN: 510001-UP"]
5.	6240-11-1160	[1]	Tube, Push Rod Komatsu	0.165 kg.
			["SN: 510001-UP"]
6.	07000-73038	[1]	O-ring Komatsu China	0.002 kg.
			["SN: 510001-UP"] analogs:["0700063038", "R0700073038"]
7.	07043-70108	[3]	Plug Komatsu	0.005 kg.
			["SN: 510001-UP"] analogs:["07043A0108"]
8.	6162-13-1150	[17]	Plug, Expansion Komatsu	0.01 kg.
			["SN: 510001-UP"]
9.	6245-11-1150	[1]	Plug, Bolt Komatsu	0.056 kg.
			["SN: 510001-UP"] analogs:["6215819530"]
10.	6240-11-1140	[2]	Guide, Crosshead Komatsu	0.12 kg.
			["SN: 510001-UP"]
11.	04020-00820	[2]	Pin, Dowel Komatsu	0.056 kg.
			["SN: 510001-UP"] analogs:["802540092"]
12.	07042-00108	[1]	Plug Komatsu	0.007 kg.
			["SN: 510001-UP"] analogs:["0704210108"]
13	6240-11-1370	[24]	Seal, Valve Stem Komatsu	0.007 kg.
			["SN: 510001-UP"]
14	6240-41-4110	[12]	Valve, Intake Komatsu	0.427 kg.
			["SN: 510001-UP"]
15	6240-41-4220	[12]	Valve, Exhaust Komatsu	0.472 kg.
			["SN: 510001-UP"]
16	6240-41-4411	[24]	Spring, Valve Komatsu	0.35 kg.
			["SN: 510001-UP"] analogs:["6240414410"]
17	6240-41-4520	[48]	Cotter, Valve Komatsu China	0.03 kg.
			["SN: 510001-UP"] analogs:["6162424520"]
18	6240-41-4430	[24]	Seat, Spring, Upper Komatsu	0.07 kg.
			["SN: 510001-UP"]
19	6240-41-4440	[24]	Seat, Spring, Lower Komatsu	0.016 kg.
			["SN: 510001-UP"]
20	6240-41-5610	[12]	Crosshead Komatsu	0.262 kg.
			["SN: 510001-UP"]
21	6240-41-5641	[12]	Screw, Adjusting Komatsu	0.04 kg.
			["SN: 510001-UP"]
22	6162-43-5630	[12]	Nut, Lock Komatsu	0.1 kg.
			["SN: 510001-UP"]
23	6240-11-1610	[42]	Bolt, Head Komatsu	0.472 kg.
			["SN: 510001-UP"] analogs:["6248111610"]
24	01438-01270	[12]	Bolt Komatsu	0.14 kg.
			["SN: 510001-UP"]
25	6240-11-1810	[6]	Gasket Assembly, Standard Komatsu	0.4 kg.
			["SN: 510001-UP"]
	6240-19-1810	[6]	Gasket Assembly, Oversize 0.40mm Komatsu	0.45 kg.
			["SN: 510001-UP"] |25.
26.	6240-11-1910	[4]	Grommet, Water Standard Komatsu	0.001 kg.
			["SN: 510001-UP"]
	6240-19-1910	[4]	Grommet, Water Oversize 0.40mm Komatsu China
			["SN: 510001-UP"] |26.
27.	6240-11-1920	[1]	Grommet, Water Standard Komatsu	0.001 kg.
			["SN: 510001-UP"]
	6240-19-1920	[1]	Grommet, Water Oversize 0.40mm Komatsu China
			["SN: 510001-UP"] |27.
28.	6240-11-1960	[7]	Grommet, Water Standard Komatsu	0.001 kg.
			["SN: 510001-UP"]
	6240-19-1960	[7]	Grommet, Water Oversize 0.40mm Komatsu China
			["SN: 510001-UP"] |28.
29.	6240-11-1930	[1]	Grommet, Oil Standard Komatsu	0.005 kg.
			["SN: 510001-UP"]
	6240-19-1930	[1]	Grommet, Oil Oversize 0.40mm Komatsu China
			["SN: 510001-UP"] |29.
30.	6162-13-1840	[1]	Grommet, Oil Standard Komatsu	0.03 kg.
			["SN: 510001-UP"]
	6162-19-1840	[1]	Grommet, Oil Oversize 0.40mm Komatsu China
			["SN: 510001-UP"] |30.

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
