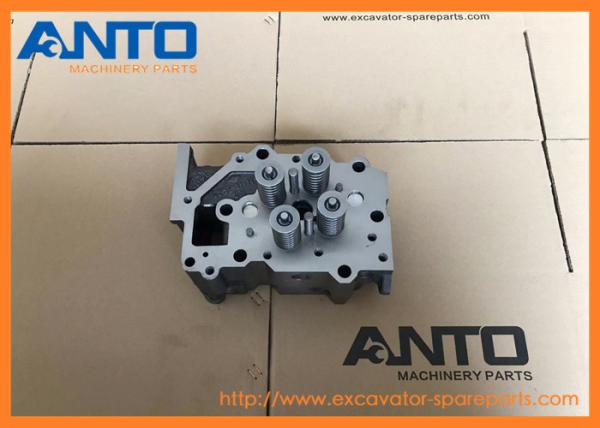

6251-11-1200 6251111200 Cylinder Head Assy Excavator Engine Parts For KOMATSU SAA6D108E

• 6251-11-1200 6251111200 Cylinder Head Assy Excavator Engine Parts Fit For KOMATSU SAA6D108E

• Specification

Application	KOMATSU excavator engine parts
Name	Cylinder head
Parts No	6251-11-1200 6251111200
Model	SAA6D125E
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Applicable models

ENGINES SAA6D125E
EXCAVATORS PC490
WHEEL LOADERS WA470 Komatsu

• More cylinder parts supplied to KOMATSU machine

20Y-30-12120 CYLINDER

BR200, BR200J, BR200R, BR200S, PC200, PF5

203-63-02322 CYLINDER ASS'Y,ARM

PC120, PC130

707-00-0G740 CYLINDER ASS'Y

D63E, D68ESS

205-63-03101 CYLINDER ASS'Y

PC200, PC200CA, PC200SC, PC210

22W-44-11170 CYLINDER ASS'Y

LW160, LW200L

23S-63-08070 CYLINDER ASS'Y,L.H. (FINAL COATING)

LW250

203-63-02120 CYLINDER ASS'Y,ARM

PC120, PC130, PC150HD, PC150NHD

15A-61-00010 CYLINDER STAY ASS'Y

D135A

144-63-13502 CYLINDER ASS'Y,L.H.

D65P

707-01-02661 CYLINDER ASS'Y,DUMP

WA600

707-04-00230 CYLINDER ASS'Y

D155A

154-30-11141 CYLINDER

D75S, D80A, D80E, D80P, D85A, D85E, D85P, D95S

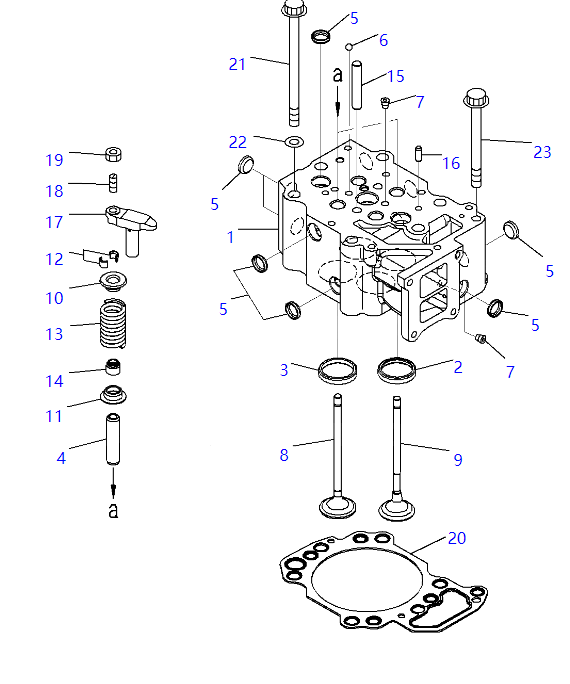

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	6251-11-1200	[6]	Cylinder Head Assembly Komatsu	14.5 kg.
			["SN: 572286-UP"] analogs:["6251111100"] |$0.
	6251-11-1100	[6]	Cylinder Head Assembly Komatsu	14.5 kg.
			["SN: 567555-572285", "SCC: A2"] analogs:["6251111200"] |$1.
2.	6150-11-1320	[2]	Insert Komatsu OEM	0.028 kg.
			["SN: 567555-UP"]
2.	6150-19-1320	[2]	Insert, T=0.25mm Komatsu China	0.03 kg.
			["SN: 567555-UP"]
2.	6150-18-1320	[2]	Insert, T=0.5mm Komatsu	0.03 kg.
			["SN: 567555-UP"]
2.	6150-17-1320	[2]	Insert, T=0.75mm Komatsu	0.033 kg.
			["SN: 567555-UP"]
2.	6150-16-1320	[2]	Insert, T=1.00mm Komatsu	0.04 kg.
			["SN: 567555-UP"]
3.	6251-11-1380	[2]	Seat Komatsu	0.001 kg.
			["SN: 567555-UP"]
3.	6251-19-1380	[2]	Insert Komatsu China
			["SN: 567555-UP"]
3.	6251-18-1380	[2]	Insert Komatsu China
			["SN: 567555-UP"]
3.	6251-17-1380	[2]	Insert Komatsu China
			["SN: 567555-UP"]
3.	6251-16-1380	[2]	Insert Komatsu	0.017 kg.
			["SN: 567555-UP"]
4.	6150-12-1370	[4]	Guide,Valve Komatsu OEM	0.07 kg.
			["SN: 567555-UP"] analogs:["6150121341", "6150111370", "6150111341"]
5.	6162-13-1150	[11]	Plug, Expansion Komatsu	0.01 kg.
			["SN: 567555-UP"]
6.	04260-00793	[1]	Ball Komatsu	0.005 kg.
			["SN: 567555-UP"]
7.	07043-70108	[3]	Plug Komatsu	0.005 kg.
			["SN: 567555-UP"] analogs:["07043A0108"]
8	6150-42-4110	[12]	Valve, Intake Komatsu OEM	0.165 kg.
			["SN: 567555-UP"]
9	6150-42-4210	[12]	Valve, Exhaust Komatsu OEM	0.194 kg.
			["SN: 567555-UP"]
10	6150-41-4510	[24]	Seat,Upper Komatsu OEM	0.03 kg.
			["SN: 567555-UP"]
11	6150-41-4430	[24]	Seat,Lower Komatsu China	0.01 kg.
			["SN: 567555-UP"]
12	6136-42-4520	[48]	Cotter, Valve Komatsu China	0.01 kg.
			["SN: 567555-UP"]
13	6251-41-4450	[24]	Spring, Valve Komatsu China
			["SN: 567555-UP"]
14	6150-41-4570	[24]	Seal, Valve Stem Komatsu China	0.01 kg.
			["SN: 567555-UP", "KIT-FLAG: S"]
15	6210-11-1140	[12]	Guide, Crosshead Komatsu	0.051 kg.
			["SN: 567555-UP"]
16	04020-00820	[12]	Pin, Dowel Komatsu	0.056 kg.
			["SN: 567555-UP"] analogs:["802540092"]
16	6150-42-5600	[12]	Crosshead Assembly Komatsu	0.16 kg.
			["SN: 567555-UP"] analogs:["6150425610"]
17.	6150-42-5610	[1]	Crosshead Komatsu	0.16 kg.
			["SN: 567555-UP"] analogs:["6150425600"]
18.	6150-41-5621	[1]	Screw Komatsu	0.05 kg.
			["SN: 567555-UP"] analogs:["6150415620"]
19.	6150-41-5630	[1]	Nut Komatsu	0.01 kg.
			["SN: 567555-UP"]
20	6251-11-1810	[6]	Gasket,Cylinder Head Komatsu	0.195 kg.
			["SN: 567555-UP", "KIT-FLAG: S"]
20	6251-19-1810	[6]	Gasket, Cylinder Head, Oversize 0.4mm Komatsu	0.000 kg.
			["SN: 567555-UP"]
21	6150-11-1620	[36]	Bolt Komatsu China
			["SN: 567555-UP"]
22	6164-31-3330	[36]	Washer Komatsu China
			["SN: 567555-UP"]
23	01438-01020	[6]	Bolt Komatsu	0.207 kg.
			["SN: 567555-UP"] analogs:["6150819160"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
