• 2306279 230-6279 Harness Fitting For Excavator Engine Parts 330C 330C FM 330C L 330C MH

• Specification

Application	C A T Excavator Engine Parts
Name	Harness
Parts No	2306279 230-6279
Model	330C 330C FM 330C L 330C MH
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Applicable models

EXCAVATOR 330C 330C FM 330C L 330C MH
INDUSTRIAL ENGINE C-9
MOBILE HYD POWER UNIT 330C

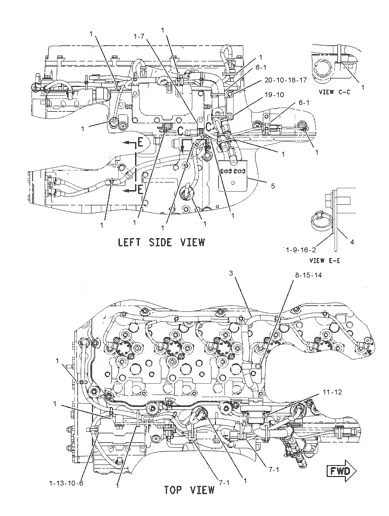

• Catalog parts list​

Pos.	Part No	Qty	Parts name	Comments
1	3S-2093 C	[24]	STRAP-CABLE
2	4P-5918 C	[1]	CLIP
3	188-9865	[1]	HARNESS AS-ENGINE (FUEL INJECTOR)
4	224-9222 C	[1]	BRACKET
5	230-6279 C	[1]	HARNESS AS-ENGINE (SENSORS)
	214-7170 J	[1]	KIT-REPAIR (ELECTRICAL CONNECTORS)(FOR EXTREME COLD CLIMATES)
	194-5226	[7]	WIRE AS (16-GA)
	3E-3371	[2]	WEDGE-RECEPTACLE LOCK (3-PIN)
	8T-8737	[8]	PLUG-SEAL
	155-2276	[3]	WEDGE-PLUG LOCK (3-PIN)
	102-8803	[2]	KIT-RECEPTACLE (3-PIN)
			(EACH INCLUDES RECEPTACLE AS & WEDGE)
	155-2260	[3]	KIT-CONNECTING PLUG (3-PIN)
			(EACH INCLUDES PLUG AS & WEDGE)
	102-8802	[2]	KIT-RECEPTACLE (2-PIN)
			(EACH INCLUDES RECEPTACLE AS & WEDGE)
	102-8803	[4]	KIT-RECEPTACLE (3-PIN)
			(EACH INCLUDES RECEPTACLE AS & WEDGE)
	100-3320	[1]	PLUG AS-CONNECTOR (2-PIN)
	126-5011	[1]	SEAL-CONNECTOR
	111-2416	[1]	PLUG AS-CONNECTOR (2-PIN)
	126-5011	[1]	SEAL-CONNECTOR
	155-2269		PLUG AS-CONNECTOR (2-PIN)
	155-2270	[4]	KIT-CONNECTING PLUG (2-PIN)
			(EACH INCLUDES PLUG AS & WEDGE)
	160-7690	[1]	PLUG AS-CONNECTOR (70-PIN)
	159-9322	[1]	SEAL-O-RING
	155-2260	[6]	KIT-CONNECTING PLUG (3-PIN)
			(EACH INCLUDES PLUG AS & WEDGE)
6	4P-7581	[4]	CLIP (LADDER)
7	4P-8134 C	[3]	CLIP (LADDER)
8	6V-4369	[1]	CLIP
9	6V-5217 CM	[1]	BOLT (M8X1.25X20-MM)
10	6V-5839 C	[5]	WASHER (11X21X2.5-MM THK)
11	7I-2272 M	[2]	BOLT (M5X0.8X12-MM)
12	8T-0328	[2]	WASHER-HARD (5.5X10X1-MM THK)
13	8T-4137 CM	[1]	BOLT (M10X1.5X20-MM)
14	8T-4205	[1]	WASHER-HARD (7.2X14.5X2-MM THK)
15	8T-5451 M	[1]	BOLT (M6X1X12-MM)
16	9M-1974	[1]	WASHER-HARD (8.8X16X2-MM THK)
17	101-6603	[1]	CAP (STUD PROTECTOR)
18	101-3129 M	[1]	STUD (M10X1.5-THD)
19	6V-8212 M	[1]	BOLT (M10X1.5X16-MM)
20	2Y-5829 M	[1]	NUT (M10X1.5-THD)
	C		CHANGE FROM PREVIOUS TYPE
	J		KIT MARKED "J" PROVIDES OIL GRADE PLUGS FOR 0W20, 10W30, AND 15W40 OIL GRADES
	M		METRIC PART

​

• More harness parts supplied to C A T machine

4190841 HARNESS AS-ENGINE

140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 5...

2358202 HARNESS AS-ENGINE

160M, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 511, 521, 522, 532, 541, 551, 552, 627G, 637D, 637E, 637G, 814F II, 815F II, 816F II, 973D, C9, CX31...

2153249 HARNESS AS-ENGINE

12H, 140M, 140M 2, 160M, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 340D L, 511, 521, 521B, 522, 522B, 532, 541, 541 ...

2011283 HARNESS ASSEMBLY

12H, 330C, 330C FM, 330C L, 330C MH, 627G, 637G, C-9, D6R II, MTC735, TK711, TK721, TK722, TK732

3239140 HARNESS AS-ENGINE

140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, ...

1212844 HARNESS ASSEMBLY-CRANK

561N, 572R II, 583T, 587T, 953C, 963C, 973C, D10R, D10T, D11N, D11R, D5N, D6K2, D6K2 LGP, D6N, D6N LGP, D6N OEM, D6R, D6R II, D6R III, D6R STD, D6T, D7E, D7R II, D7R XR, D8R, D8R II, D8T, D9R, D9T, PL...

2102509 HARNESS AS-TRANSMISSION

572R II, D6R II, D7R II, D8R II

• Other hot selling parts

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft

2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y

3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y

4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder

5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve

6.Electrical parts: Wiring harness, Controller, Monitor

7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
