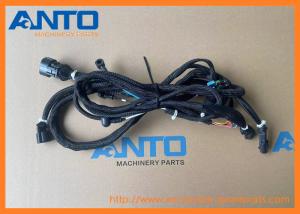

- 21N6-21033 Wire Harness HYUNDAI Excavator Engine Parts Fit For R225-7 R265-7
| Name | Wire Harness |
| Parts No | 21N6-21033 |
| Machine Model | R200W-7 R210LC-7 R220LC-7 R250LC-7 |
| Category | Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
7 SERIES WHEEL EXCAVATOR R200W7
7-SERIES CRAWLER EXCAVATOR R210LC7 R250LC7 RC215C7 RD220-7 Hyundai
- More other harness parts fit for HYUNDAI machine
| 21N6-24024 HARNESS-FRAME |
| R200W7 |
| |
| 21N6-21321 HARNESS ROTATE FRAME |
| R210LC7, R210LC7A, R210LC7H |
| |
| 21N7-10019 HARNESS-FRAME |
| R250LC7 |
| |
| 21N7-12010 HARNESS-FRAME |
| R250LC7 |
| |
| 21Q8-39101 HARNESS-DIAGNOSTIC |
| 110D-7E, HL740-9, HL740TM-9, HL757-9, HL757-9S, HL757-9SB, HL757TM-9, HL760-9, HL760-9S, HL760-9SB, HL770-9, HL770-9S, R140W9, R170W9, R210LC7, R210LC7A, R210LC9, R210LC9BC, R210NLC9, R210W-9, R210W9M... |
| |
| 21N4-22020 HARNESS-USB |
| R110-7, R110-7A, R80-7A, RD110-7, RD220-7, RD80-7 |
| |
| 21N6-DA0090 HARNESS-HOUR METER |
| R140LC9V, R215LC7, RD110-7, RD140LC9, RD210-7, RD220-7, RD340LC-7, RD80-7 |
| |
| 21N6-21019 HARNESS-FRAME |
| R210LC7 |
| |
| 21N6-23010 HARNESS-FRAME |
| R210LC7 |

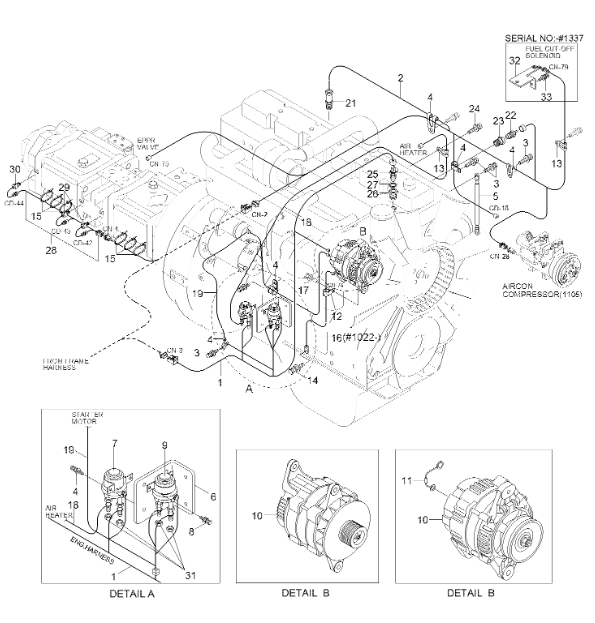

| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | ENGINE ELECTRIC | SEE 2040 |
| 1 | 21N6-21020 | [1] | HARNESS-ENGINE FRONT |
|
| 1 | 21N6-21021 | [1] | HARNESS-ENGINE FRONT |
|
| 1 | 21N6-21022 | [1] | HARNESS-ENGINE FRONT |
|
| 2 | 21N6-21031 | [1] | HARNESS-ENGINE REAR |
|
| 2 | 21N6-21032 | [1] | HARNESS-ENGINE REAR |
|
| 2 | 21N6-21033 | [1] | HARNESS-ENGINE REAR |
|
| 3 | S037-122052 | [6] | BOLT-W/WASHER |
|
| 3 | S037-122052 | [7] | BOLT-W/WASHER |
|
| 4 | 21E9-00170 | [8] | CLIP-HARNESS |
|
| 4 | 21E9-00170 | [9] | CLIP-HARNESS |
|
| 5 | 21EH-30720 | [1] | STRAP-EARTH |
|
| 6 | 21N6-10190 | [1] | BRACKET-START RY |
|
| 7 | E225-0006 | [1] | RELAY-HEATER |
|
| 8 | S035-061622 | [4] | BOLT-W/WASHER |
|
| 9 | 21N6-30120 | [1] | RELAY-START |
|
| N10. | 21E6-40030 | [1] | ALTERNATOR ASSY |
|
| 10 | 21Q6-41000-K | [1] | ALTERNATOR KIT |
|
| 10 | 21Q6-42001 | [1] | ALTERNATOR ASSY |
|
| 10-1. | 21Q6-41000 | [1] | ALTERNATOR ASSY | NOT SHOWN |
| 10-2. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 10-1. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 10 | 21Q6-42001 | [1] | ALTERNATOR ASSY |
|
| 11 | 21E1-21120 | [1] | WIRE LINK-ALTERNATOR |
|
| 12 | S593-000702 | [1] | CLIP-HARNESS |
|
| 12 | S593-000802 | [1] | CLIP-HARNESS |
|
| 13 | S593-000902 | [3] | CLIP-HARNESS |
|
| 13 | S593-000902 | [1] | CLIP-HARNESS |
|
| 13 | S593-000902 | [2] | CLIP-HARNESS |
|
| 13 | S593-000802 | [2] | CLIP-HARNESS |
|
| 14 | S037-081652 | [1] | BOLT-W/WASHER |
|
| 15 | S552-050203 | [15] | CLAMP-BAND |
|
| 16 | 21N8-11090 | [1] | CABLE(START-HEATER RY) |
|
| 16 | 21L8-10360 | [2] | CABLE(ALT-EARTH) |
|
| 17 | 21N8-10200 | [1] | CABLE(ALT-STARTER) |
|
| 17 | 21N8-10201 | [1] | CABLE(ALT-STARTER) |
|
| 18 | 21N6-21240 | [1] | CABLE(AIR HEAT-HEAT RY) |
|
| 19 | 21EA-00191 | [1] | HARNESS-EXT,START RY |
|
| 20 | 21N8-11110 | [1] | CABLE(ALT-EARTH) |
|
| 21 | 21E3-0042 | [1] | SENSOR-SPEED |
|
| 21 | 21Q6-15800 | [1] | SENSOR-SPEED |
|
| 22 | 21E3-5001 | [1] | SWITCH-ENG OIL PRESS |
|
| 23 | 21EN-00511 | [1] | ADAPTER-OIL PRESSURE |
|
| 23 | 21N7-10070 | [1] | ADAPTER-OIL PRESSURE |
|
| 24 | S035-101612 | [1] | BOLT-W/WASHER |
|
| 25 | 21EN-40100 | [1] | SENDER-TEMP |
|
| 26 | 21EA-50171 | [1] | FITTING-TEMP SW |
|
| 27 | 21EA-50260 | [1] | PACKING-TEMP SW |
|
| 28 | 21N8-11170 | [1] | HARNESS-PUMP PS |
|
| 29 | 21EG-32200 | [2] | SENDER-PRESSURE | OPTION |
| 30 | 21EG-32210 | [1] | SENDER-PRESSURE | OPTION |
| 31 | S205-061002 | [4] | NUT |
|
| 32 | 21EA-50390 | [1] | PLATE |
|
| 33 | S037-122522 | [1] | BOLT-W/WASHER |
|
| N. | @ | [AR] | NOT SUPPLIED PARTS |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
