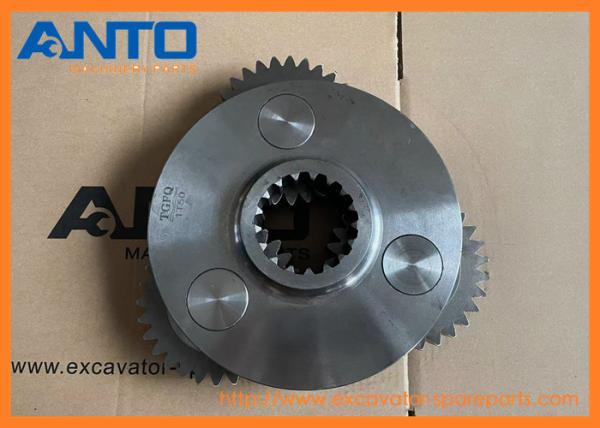

| Application | Excavator swing gear |
| Name | Carrier |
| Parts No | 1655795 165-5795 |
| Model | 311C 313D2 LGP 315C 315D L 316E L 318D L 318D2 L |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
EXCAVATOR 311C 313D2 LGP 315C 315D L 316E L 318D L 318D2 L
- More carrier parts supplied to C A T machine
| 1218139 CARRIER |
| M315, M315C, M316C, M318 |
| |
| 8U5989 CARRIER-PLANETARY |
| 206B, 212B, M315, M315C, M316C, M318, M318C, M318C MH, M320, M322C |
| |
| 1324344 CARRIER |
| M312, M313C |
| |
| 1324288 CARRIER-PLANETARY |
| M312, M313C |
| |
| 1550823 CARRIER |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| |
| 3756310 CARRIER-PLANETARY |
| M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318D, M318D MH, M322C, M322D, M322D MH |
| |
| 1550823 CARRIER |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| |
| 1484749 CARRIER-PLANETARY |
| 315C, 318B |
| |
| 1582457 CARRIER GP |
| 317B LN, 318B |
| |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 1550173 CARRIER GP |
| 315B L, 317B LN, 318B |
| |
| 1719443 CARRIER |
| 307C, 307D, 308C, 308D, 308E |
| |
| 1719439 CARRIER |
| 307C, 307D, 308C, 308D, 308E |
| |
| 3074161 CARRIER |
| 307C, 307D, 308C, 308D, 308E, 308E CR, 308E SR |
| |
| 1938429 CARRIER |
| 304.5 |
| |
| 1938428 CARRIER |
| 304.5 |
| |
| 2069479 CARRIER AS |
| 302.5, 302.5C |

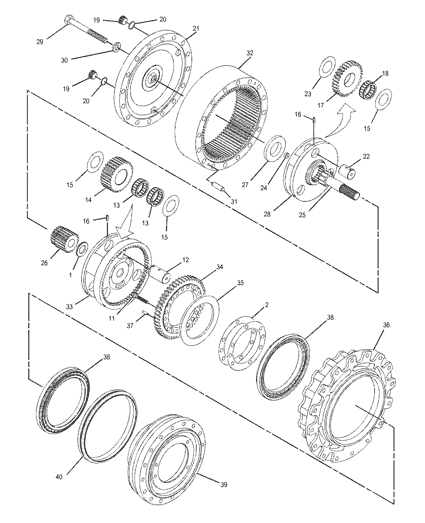

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 165-5785 | [1] | SPACER (40X60.9X1-MM THK) | |
| 2 | 096-1773 B | [1] | SHIM (0.15-MM THK) | |
| | 096-1774 B | [1] | SHIM (0.3-MM THK) | |
| | 096-1775 B | [1] | SHIM (0.4-MM THK) | |
| | 096-1776 B | [1] | SHIM (0.5-MM THK) | |
| | 096-1777 B | [1] | SHIM (0.6-MM THK) | |
| | 096-1778 B | [1] | SHIM (0.7-MM THK) | |
| | 096-1779 B | [1] | SHIM (0.8-MM THK) | |
| | 096-1780 B | [1] | SHIM (1-MM THK) | |
| | 096-1781 B | [1] | SHIM (1.6-MM THK) | |
| 11 | 227-6034 M | [16] | BOLT-FLANGE HEAD (M16X2X60-MM) | |
| 12 | 165-5786 | [3] | SHAFT | |
| 13 | 296-6269 | [6] | BEARING-ROLLER | |
| 14 | 165-5787 | [3] | GEAR-PLANETARY (26-TEETH) | |
| 15 | 094-1528 | [6] | WASHER (53X84X1-MM THK) | |
| 16 | 095-0891 | [6] | PIN-SPRING | |
| 17 | 165-5788 | [3] | GEAR-PLANETARY (29-TEETH) | |
| 18 | 296-6268 | [3] | BEARING AS-ROLLER | |
| 19 | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) | |
| 20 | 7M-8485 | [2] | SEAL-O-RING | |
| 21 | 165-5790 | [1] | COVER | |
| 22 | 7Y-0225 | [3] | SHAFT-PLANETARY | |
| 23 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | |
| 24 | 094-0580 | [1] | PLATE (10-MM THK) | |
| 25 | 165-5792 | [1] | GEAR-SUN (14-TEETH) | |
| 26 | 165-5793 | [1] | GEAR-SUN (17-TEETH) | |
| 27 | 165-5794 | [1] | SPACER (72X101X7-MM THK) | |
| 28 | 165-5795 | [1] | CARRIER | |
| 29 | 8T-7929 M | [16] | BOLT (M12X1.75X180-MM) | |
| 30 | 8T-4223 | [16] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 31 | 095-1299 | [3] | DOWEL | |
| 32 | 165-3892 | [1] | GEAR-RING (73-TEETH) | |
| 33 | 165-5796 | [1] | CARRIER | |
| 34 | 165-5797 | [1] | GEAR (51-TEETH) | |
| 35 | 165-5800 | [1] | WASHER (241X282X3-MM THK) | |
| 36 | 210-3530 | [1] | HOUSING | |
| 37 | 114-1539 | [4] | PIN-DOWEL | |
| 38 | 296-6220 | [2] | BALL BEARING | |
| 39 | 210-3531 | [1] | HOUSING-MOTOR | |
| 40 | 174-4874 | [1] | SEAL GP-DUO-CONE | |
| | | | |
| | 1U-8846 BF | | SEALANT-GASKET | |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
