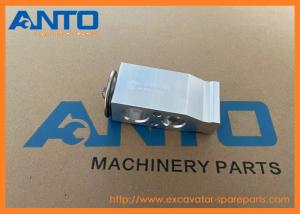

• ND447500-2750 Expansion Valve KOMATSU Excavator Spare Parts Fit For PC300-8 PC350-8

• Specification

Name	Expansion Valve
Parts No	ND447500-2750
Machene Model	HB205 HB215 PC130 PC160 PC190 PC200
Category	Cab, Air Conditioner Unit
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other valve parts fit for KOMATSU machine

20Y-53-11961 Valve Assembly

PC130, PC220, PC240, PC290, PC300, PC350, PC400, PRESSURE, RAIN

20Y-04-K2450 VALVE ASS'Y

AIR, HB205, HB215, PC130, PC138US, PC160, PC180, PC190, PC200, PC210, PC220, PC228, PC230NHD, PC240, PC270, PC290, PC300, PC350, PC360, PC400, PC450, PC490, PRESSURE, RAIN

203-62-72300 VALVE ASS'Y

PC130

203-60-71210 VALVE ASS'Y,(SEE FIG.Y1860-01A0)

PC130, PC2000

723-51-02500 VALVE ASS'Y

PC130

207-04-K1160 VALVE ASS'Y

PC130, PC150, PC150LGP, PC160, PC180, PC180L, PC200, PC200EL, PC200EN, PC210, PC220, PC230NHD, PC240, PC290, PC300, PC340, PC380, PC450, PW130ES, PW150ES, PW170, PW170ES

203-62-65101SA VALVE ASS'Y

PC128US, PC138, PC138US

ND447500-2660 VALVE

BOOM,, CARRIER, PC118MR, PC138, PC138US, PC228, PC228US, PC78US, PC78UU, PC88MR, PW118MR, PW98MR, WINDOW

708-3D-04620 VALVE ASSEMBLY, PC

PC138

TZ600D400001-B Valve Assembly, Control

PC130, PC138, PC138US, WINDOW

TZ600D310000-A Valve Assembly, Relief

PC130, PC138, PC138US, WINDOW

AS182831 Valve Kit

HB215, HM400, PC130, PC138, PC138US, PC160, PC190, PC200, PC210, PC220, PC230NHD, PC240, PC290, PC300, PC350, PC350HD, PC400, PC450, PC600, PC650, PC700, PC800, PC800SE, PC850, PC850SE, PRESSURE

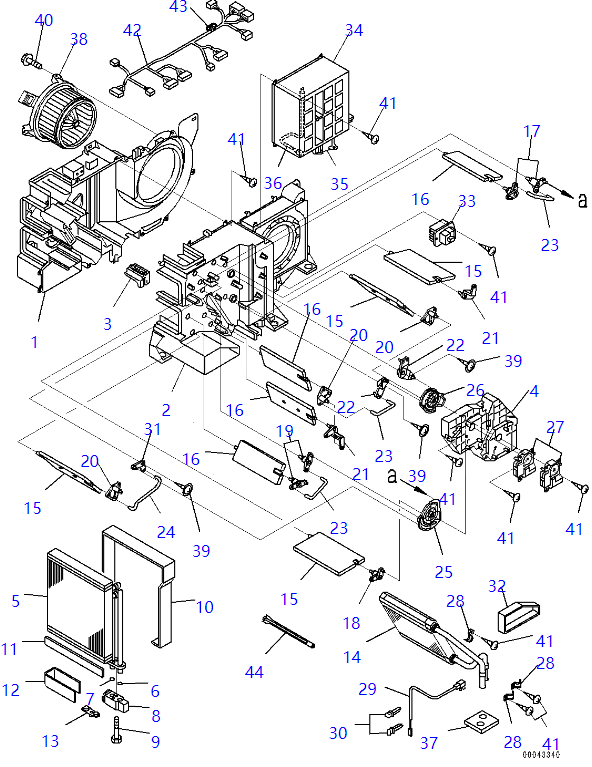

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	20Y-810-1211	[1]	Air Conditioner Assembly Komatsu	9.2 kg.
			["SN: 60001-UP"] analogs:["20Y8101212"] |$0.
1.	ND245450-5831	[1]	Case Komatsu	0.000 kg.
			["SN: 60001-UP"]
2.	ND245450-5840	[1]	Case Komatsu	41.101 kg.
			["SN: 60001-UP"] analogs:["2089797610", "2089797611"]
3.	ND116576-3810	[1]	Plate Komatsu	0.000 kg.
			["SN: 60001-UP"]
4.	ND116576-3820	[1]	Plate Komatsu	0.5 kg.
			["SN: 60001-UP"]
4.	ND446010-3132	[1]	Evaporator Assembly Komatsu	2.56 kg.
			["SN: 60001-UP"] analogs:["ND4460103131"]
5	ND446600-0991	[1]	Evaporator Assembly Komatsu	2.3 kg.
			["SN: 60001-UP"] analogs:["ND4466000990", "ND4466000992", "ND4460000990"]
6	ND949142-0020	[1]	O-ring Komatsu	0.001 kg.
			["SN: 60001-UP"] analogs:["20Y9793140"]
7	ND949142-0030	[1]	O-ring Komatsu	0.001 kg.
			["SN: 60001-UP"] analogs:["20Y9793130"]
8	ND447500-4760	[1]	Valve, Expansion Komatsu China
			["SN: 63600-UP"]
8	ND447500-2750	[1]	Valve, Expansion Komatsu	0.15 kg.
			["SN: 60001-63599"]
9	ND949046-3100	[2]	Bolt Komatsu China
			["SN: 60001-UP"]
10	ND146657-8841	[1]	Packing Komatsu China
			["SN: 60001-UP"]
11	ND146657-9811	[3]	Packing Komatsu China
			["SN: 60001-UP"]
12	ND146657-8850	[1]	Packing Komatsu	0.03 kg.
			["SN: 60001-UP"]
13	ND445021-3941	[1]	Plug Komatsu China
			["SN: 60001-UP"]
14.	ND116140-0050	[1]	Core Subassembly, Heater Komatsu China	41.101 kg.
			["SN: 60001-UP"]
15.	ND116660-7570	[4]	Door Assembly Komatsu China
			["SN: 60001-UP"]
16.	ND116650-6850	[4]	Door Assembly Komatsu	0.06 kg.
			["SN: 60001-UP"]
17.	ND116780-2481	[2]	Lever Subassembly, Link Komatsu China
			["SN: 60001-UP"]
18.	ND116780-2491	[1]	Lever Subassembly, Link Komatsu China
			["SN: 60001-UP"]
19.	ND116780-2501	[2]	Lever Subassembly, Link Komatsu	41.101 kg.
			["SN: 60001-UP"]
20.	ND116780-2510	[3]	Lever Subassembly, Link Komatsu	41.101 kg.
			["SN: 60001-UP"]
21.	ND116781-3000	[2]	Lever Komatsu China
			["SN: 60001-UP"]
22.	ND116780-3130	[2]	Lever Subassembly Komatsu China
			["SN: 60001-UP"]
23.	ND116662-7670	[3]	Shaft Komatsu China
			["SN: 60001-UP"]
24.	ND116662-7681	[1]	Shaft Komatsu China
			["SN: 60001-UP"]
25.	ND116576-3852	[1]	Plate Komatsu China
			["SN: 60001-UP"] analogs:["ND1165763851"]
26.	ND116576-3862	[1]	Plate Komatsu China
			["SN: 60001-UP"] analogs:["ND1165763861"]
27.	ND063800-0300	[2]	Servo Motor Assembly Komatsu	0.16 kg.
			["SN: 60001-UP"]
28.	ND017231-0700	[3]	Clamp Komatsu China
			["SN: 60001-UP"]
29.	ND077500-5890	[1]	Thermistor Assembly Komatsu	0.022 kg.
			["SN: 60001-UP"]
30.	ND246790-2060	[2]	Clamp Komatsu China
			["SN: 60001-UP"]
31.	ND116780-3920	[1]	Lever Subassembly Komatsu China
			["SN: 60001-UP"]
32.	ND146667-0440	[1]	Packing Komatsu China
			["SN: 60001-UP"]
33.	ND077800-0750	[1]	Transistor Komatsu	0.14 kg.
			["SN: 60001-UP"]
34.	ND146340-0560	[1]	Box Assembly Komatsu	41101.101 kg.
			["SN: 60001-UP"] analogs:["ND1463400531"]
35	ND063600-4580	[1]	Servo Motor Assembly Komatsu	0.16 kg.
			["SN: 60001-UP"]
36	ND077500-5650	[1]	Thermistor Assembly Komatsu	0.01 kg.
			["SN: 60001-UP"]
37.	ND146657-8860	[1]	Packing Komatsu	0.006 kg.
			["SN: 60001-UP"]
38.	ND116340-7350	[1]	Motor Assembly Komatsu OEM	1.95 kg.
			["SN: 60001-UP"]
39.	ND949008-0460	[3]	Screw, Tapping Komatsu China
			["SN: 60001-UP"]
40.	ND949008-0330	[3]	Screw, Tapping Komatsu China
			["SN: 60001-UP"]
41.	ND949001-1730	[32]	Screw, Tapping Komatsu China
			["SN: 60001-UP"]
42.	ND246470-4311	[1]	Wiring Harness Assembly Komatsu	0.4 kg.
			["SN: 60001-UP"]
43	ND93950-05003	[1]	Fuse Komatsu	0.08 kg.
			["SN: 60001-UP"]
44.	ND116662-8320	[1]	Shaft Komatsu China
			["SN: 60001-UP"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
