• 165-5814 176-8573 Friction Plate Excavator Travel Motor Parts Fit For 311C 312C 313D2 C4.4

• Specification

Name	Friction Plate
Parts No	165-5814 176-8573
Machine Model	311C 312C 313D2 314C
Category	Travel Motor Parts
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other plate parts fit for C A T machine

7Y1883 PLATE

311, 311B, 311C, 312, 312B, 313D2 LGP, 315, 315B, 315B FM L, 315B L, 315C, 315D L, 316E L, 317, 317B LN, 318B, 318D L, 318D2 L, 320 L, 320N, OEMS

5P9891 PLATE-WARNING

1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 307, 307B, 307D, 307E, 308E, 311, 311B, 311C, 312, 312B, 312B L, 312C L, 313B, 314C, 315, 315B, 315B FM L, 315C, 317, 318B, 318C, 319C, 320 L, 320B, 3...

0858828 PLATE

311, 311B, 311C, 311D LRR, 311F LRR, 312, 312B L, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313B, 313D, 313D2, 313D2 LGP, 314C, 314D LCR, 314E CR, 314E LCR, 315, 316E L, 320D...

1089122 PLATE AS

311, 311B, 311C, 312, 312B, 312B L, 312C L, 313B, 314C

0940580 PLATE

311C, 311D LRR, 311F LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, 315C, 315D L, 316E L, 318B, 318C, 318D...

1076954 PLATE-FRICTION

311C, 313D2 LGP, 315C, 315D L, 316E L, 318B, 318C, 318D L, 318D2 L, 318E L, 319C, 319D, 319D L, 319D LN, 320B, 320B FM LL, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 32...

2531346 PLATE-WARNING

1290T, 1390, 2491, 2590, 307C, 307D, 307E, 308C, 308D, 308E, 308E CR, 308E SR, 308E2 CR, 311D LRR, 311F LRR, 312C, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314D CR...

5I7654 PLATE

311, 311B, 311C, 311D LRR, 312, 312B, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D ...

5I7787 PLATE

311, 311B, 311C, 311D LRR, 312, 312B, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D ...

5I7788 PLATE

311, 311B, 311C, 311D LRR, 312, 312B, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320 L, 320B, 320C, 320C FM, 320C L, 320D

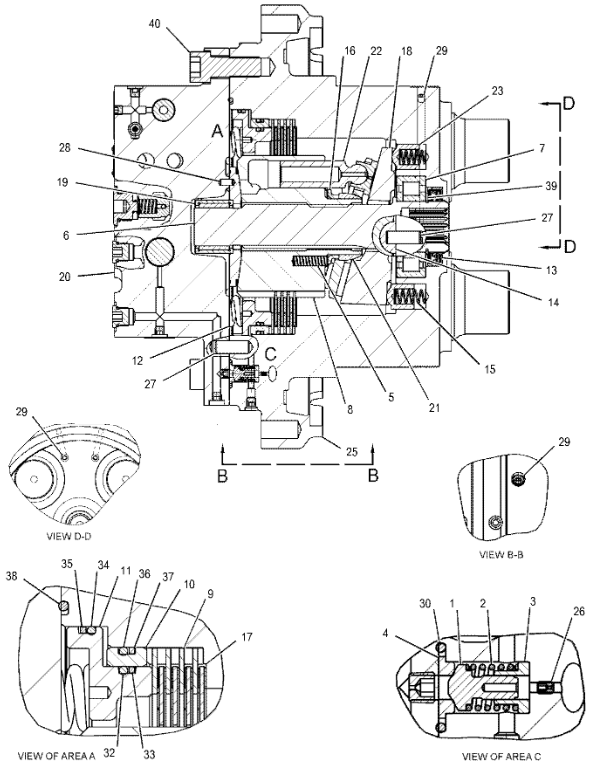

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	087-4742	[1]	VALVE
2	095-7380	[1]	SPRING
3	095-7382	[1]	RETAINER
4	096-1519	[1]	SEAT
5	165-2799	[9]	SPRING
6	165-5803	[1]	SHAFT
7	165-5804	[1]	BEARING-ROLLER
8	165-5811	[1]	BARREL AS
9	165-5814	[4]	PLATE-SEPARATOR
10	165-5816	[1]	GUIDE-PISTON
11	165-5817	[1]	PISTON-BRAKE
12	165-5818	[8]	SPRING
13	165-5826	[1]	SEAL-LIP TYPE
14	165-5828	[2]	KEY
15	165-5831	[2]	SPRING
16	176-8131	[1]	SPACER-SPECIAL
17	176-8573	[4]	PLATE-FRICTION
18	176-8579	[1]	PLATE-CAM
19	267-8084	[1]	BEARING-NEEDLE
20	349-9520 Y	[1]	VALVE GP-TRAVEL COUNTERBALANCE
21	353-5829	[1]	GUIDE-BALL
22	451-7530	[1]	PISTON AS
23	374-4171	[2]	PISTON
25	421-4384	[1]	BODY
26	421-4385	[1]	ORIFICE
27	085-9769	[4]	PIN
28	094-1875	[1]	DOWEL
29	094-1882	[7]	PLUG
30	095-1585	[1]	SEAL-O-RING
32	165-5819	[1]	SEAL-O-RING
33	165-5820	[1]	RING-BACKUP
34	165-5821	[1]	SEAL-O-RING
35	165-5822	[1]	RING-BACKUP
36	165-5823	[1]	SEAL-O-RING
37	165-5824	[1]	RING-BACKUP
38	1H-8278	[1]	SEAL-O-RING
39	8T-4240	[1]	RING-RETAINING
40	8T-4944 M	[9]	BOLT-SOCKET HEAD (M16X2X40-MM)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

Product Tags:

165-5814 Excavator Travel Motor Parts



311C Excavator Travel Motor Parts



313D2 Excavator Travel Motor Parts



165-5814 176-8573 Friction Plate Excavator Travel Motor Parts For 311C 312C 313D2 C4.4 Images
