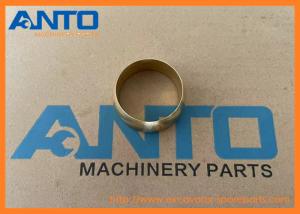

• 353-5829 3535829 Ball Guide Excavator Spare Parts Fit For C4.4 313D 314C

• Specification

Name	Ball Guide
Parts No	353-5829 3535829
Machine Model	311C 312C 312E 312E L 313D
Category	Hydraulic Parts
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other guide parts fit for C A T machine

1850882 GUIDE-VALVE

3054, 3054B, 3054C, 3054E, 3056, 3056E, 312B L, 312C, 312D2, 312D2 GC, 312D2 L, 313D2, 313D2 LGP, 315B L, 315C, 318D2 L, 414E, 416C, 416D, 416E, 416F, 420D, 420E, 420F, 422E, 422F, 424D, 426C, 428C, 4...

1225114 GUIDE-BALL

311C, 313D2 LGP, 315C, 315D L, 316E L, 318B, 318C, 318D L, 318D2 L, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320B FM LL, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320...

1838172 GUIDE

311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320B, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN

1838173 GUIDE

311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320B, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN

3531923 GUIDE

308D, 308E CR, 308E SR, 314D CR, 314D LCR, 314E CR, 314E LCR, 321D LCR

3054885 GUIDE

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN

3109532 GUIDE

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA

2964702 GUIDE

311D LRR, 312D, 312D L, 313D, 315D L, 318D L, 319D, 319D L, 319D LN

3604584 GUIDE

318E L, 319D L, 319D LN, 320D, 320D FM, 320D GC, 320D L, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 321D LCR, 323D L, 323D LN, 323D SA, 323D2 L, 323E L, 324...

3109594 GUIDE

314D CR, 314D LCR

2102874 GUIDE

314C, 314D CR, 314D LCR, 314E CR, 314E LCR

3346509 GUIDE AS

312D, 312D L, 312E, 312E L, 315D L, 316E L, 318E L, 319D L, 319D LN, 320D, 320D L, 320D LRR, 320D RR, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D L, 323D LN, 323D SA, 323E L, 324D, 324D L, 324E, 32...

2095947 GUIDE

314C

1961548 GUIDE

308C, 308D, 314C, 314D LCR, 321C, 321D LCR, 325C, 328D LCR

1961549 GUIDE

308C, 308D, 314C, 314D LCR, 321C, 321D LCR, 325C, 328D LCR

2351165 GUIDE

308C

1655816 GUIDE-PISTON

311C, 311D LRR, 311F LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L

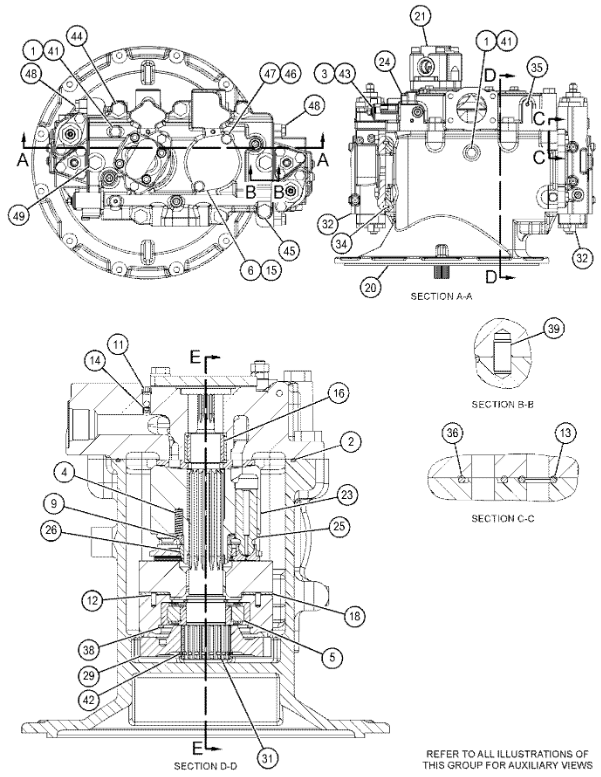

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	9S-4191	[2]	PLUG (9/16-18-THD)
2	5P-2545	[1]	SEAL-O-RING
3	111-9916 Y	[1]	VALVE GP-SOLENOID (PRESSURE REDUCING)
4	165-2799	[12]	SPRING
5	165-2801	[2]	BEARING-ROLLER
6	165-2804	[1]	FLANGE
7	165-2805	[2]	BLOCK
8	165-3853	[1]	COVER
9	176-8131	[2]	SPACER-SPECIAL
10	176-8132	[2]	BEARING
11	190-4896	[2]	PLUG
12	192-0573	[4]	PIN-DOWEL
13	199-0518	[2]	SEAL-O-RING
14	207-2985	[2]	ORIFICE
15	225-6216	[1]	GASKET
16	267-8084	[2]	BEARING-NEEDLE
17	268-6263	[2]	CAM
18	269-2433	[4]	BEARING-CRADLE
19	273-8315	[1]	SEAL-O-RING
20	282-9192	[1]	CASE-FLANGE
21	341-2860 Y	[1]	PUMP GP-GEAR
22	353-5819	[1]	BARREL AS-DRIVE
23	353-5820	[1]	BARREL AS-DRIVEN
24	353-5823	[1]	BLOCK-PORT
25	353-5824	[2]	PISTON AS
	353-5825	[1]	RETAINER
26	353-5829	[2]	GUIDE-BALL
27	353-5837	[1]	SEAL-LIP TYPE
28	368-9994	[1]	PLATE
29	368-9995	[2]	GEAR (47-TEETH)
30	368-9996	[1]	SHAFT-DRIVE
31	368-9997	[1]	SHAFT-DRIVEN
32	439-5944 Y	[2]	HEAD GP-PUMP
34	094-1875	[6]	DOWEL
35	094-1882	[13]	PLUG
36	189-9763	[4]	SEAL-O-RING
37	1H-7339	[1]	SEAL-O-RING
38	1J-6472	[2]	RING-RETAINING
39	2Y-5578	[4]	PIN
41	3J-1907	[2]	SEAL-O-RING
42	6V-8757	[2]	RING-RETAINING
43	7I-2272 M	[2]	BOLT (M5X0.8X12-MM)
44	7X-2553 M	[5]	BOLT (M16X2X40-MM)
45	7X-2556 M	[1]	BOLT (M16X2X100-MM)
46	8T-4121	[2]	WASHER-HARD (11X21X2.5-MM THK)
47	8T-4136 M	[4]	BOLT (M10X1.5X25-MM)
48	8T-4139 M	[8]	BOLT (M12X1.75X30-MM)
49	8T-4140 M	[2]	BOLT (M16X2X60-MM)
50	8T-4185 M	[4]	BOLT (M10X1.5X50-MM)
51	8T-7547 M	[4]	BOLT (M8X1.25X30-MM)
52	8T-9599	[1]	RING-RETAINING
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
