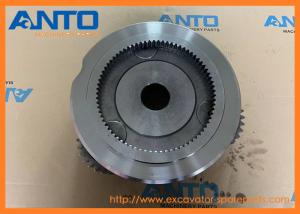

• LN00120 LC00202 Housing CASE Excavator Spare Parts For CX290B CX300C

• Specification

Name	Housing
Parts No	LN00120 LC00202
Machine Model	CX290 CX290B CX300C
Category	Motor Parts
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other housing parts fit for CASE machine

J937426 HOUSING

845, RP110, RP135, 6591T, RP165, 6591TA, RP65, 621C, RP85, RPZ125, RPZ145, CX130, RPZ65, RPZ85, SPX3310, CX160, CX210, CX210LR, SPX3185, 3150, CX240, 3185, CX240LR, 3210, CX290, 680K, 686G, 686GXR, SP...

A49804 HOUSING

STEIGER 280, 621B, STEIGER 330, 1088, STEIGER 335, STX280, 621C, 780C, 721C, 821C, 850D, STX330, 1150E, 855D, 1150G, 9010, 9010B, CX210, 9020, CX210LR, 9020B, 850E, 9030, 621D, 855E, 9030B, 888, CX240...

A49797 HOUSING

621B, 1088, 621C, 780C, 855E, 850D, 1150E, 855D, 1150G, 9010, 9010B, CX210, 9020, CX210LR, 9020B, 850E, 9030, 621D, 9030B, 888, CX240, CX240LR, 1155E, CX290, 850G, 680K, 688, 621, 1085C, W14C

KHN2336 HOUSING

CX800, CX130B, CX160B, CX130, CX210B, CX210BLR, CX210BNLC, CX160, CX240B, CX210, CX240BLR, CX210LR, CX290B, CX210N, CX350B, CX470B, CX700B, CX240, CX800B, CX240LR, CX290, CX330, CX350, CX460, CX700

LN00120 HOUSING

CX290, CX290B, CX300C

87378537 HOUSING

CX350B, CX330, CX290B

87379335 HOUSING

CX350B, CX330, CX290B

LR014520 HOUSING

CX240BLR, CX130B, CX290B, CX160B, CX350B, CX210B, CX470B, CX210BLR, CX700B, CX210BNLC, CX800B, CX240B

KHN12880 HOUSING

CX240BLR, CX130B, CX290B, CX160B, CX350B, CX210B, CX470B, CX210BLR, CX700B, CX210BNLC, CX800B, CX240B

LR019420 HOUSING

CX350C, CX235C SR, CX210C LC, CX300C

84389348 HOUSING

CX350C, CX300C

84388896 HOUSING

CX350C, CX300C

LT00126 HOUSING

CX290, CX290B, CX300C

LN00094 HOUSING

CX290

LN00093 HOUSING

CX290

KBH0920 HOUSING

CX290

KBC0142 HOUSING

CX240LR, CX240

KBC0098 HOUSING

CX240LR, CX240

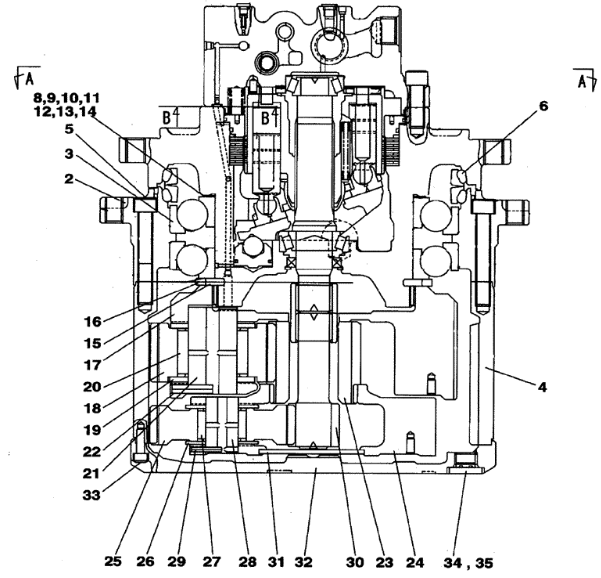

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
. .	KBA10750	[1]	MOTO-REDUCTION GEAR	SUM Includes All Parts On Figures 06-02 - 06-04 Superseded by part number: LJ018700, LN001980
. .	LJ018700R	[1]	REMAN-HYD MOTOR	RAC CX290B CRAWLER EXCAVATOR TIER 3 (NA) (1/07-), ASSY, Reman for New PN KBA10750
. .	LJ018700C	[1]	CORE-MOTOR HYDRAULIC	RAC Return Number
. .	LN001980	[1]	REDUCER	SUM Motor, Piston; Incl. 2 - 35
2	LT00126	[1]	HOUSING	SUM
3	LB00791	[2]	BEARING, BALL	SUM
4	LC002980	[1]	RING GEAR	SUM
5	863-18100	[22]	HEX SOC SCREW,M18 x 100mm, Cl 12.9	CAS
6	LE00993	[1]	SEAL	SUM
. .	LH00388	[1]	SHIM	SUM Incl. 8 - 14
8	LH00421	[1]	SHIM,1.3mm Thk	SUM
9	LH00422	[1]	SHIM,1.4mm Thk	SUM
10	LH00423	[1]	SHIM,1.5mm Thk	SUM
11	LH00424	[1]	SHIM,1.6mm Thk	SUM
12	LH00425	[1]	SHIM,1.7mm Thk	SUM
13	LH00426	[1]	SHIM,1.8mm Thk	SUM
14	LH00427	[1]	SHIM,1.9mm Thk	SUM
15	LA00832	[2]	LOCK WASHER	SUM
16	LE00992	[1]	RING	SUM
17	LN00120	[1]	HOUSING	SUM
18	LC00202	[3]	PLANETARY GEAR	SUM
19	LA00835	[6]	WASHER	SUM
20	LB011160	[3]	NEEDLE BEARING	SUM
21	LA00907	[3]	PIN	SUM
22	338W100Z056N	[3]	DOWEL	SUM
23	LC00201	[1]	SUN GEAR	SUM
24	LN00119	[1]	HOUSING	SUM
25	LC00199	[3]	PLANETARY GEAR	SUM
26	LA00830	[6]	WASHER	SUM
27	LB011170	[3]	NEEDLE BEARING	SUM
28	LA00906	[3]	PIN	SUM
29	338W060Z036N	[3]	PIN	SUM Superseded by part number: 338W060Z036B
30	LC002990	[1]	SUN GEAR	SUM
31	LR00857	[1]	PLATE	SUM
32	LW005140	[1]	COVER	SUM
33	108R010Z025B	[18]	BOLT	SUM
34	LK00383	[2]	PLUG	SUM
35	154503A1	[2]	O-RING	SUM

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
