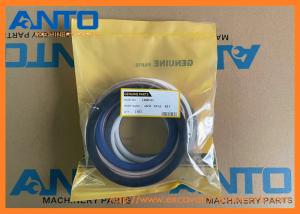

• VOE14589131 14589131 Sealing Kit Excavator Spare Parts For EC210C EC235C

• Specification

Name	Sealing Kit
Parts No	VOE14589131 14589131
Machine Model	EC200B EC200D EC210B EC210C EC210D EC220D
Category	Dipper Arm Cylinder
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other seal parts fit for V O L V O machine

VOE14522998 Sealing

EC235C, EC290B, EC290C, EC330B, EC360B, EC360C

VOE14507705 Sealing

EC135B, EC140, EC140B, EC140C, EC140D, EC150, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210, EC210B, EC210C, EC210D, EC220D, EC220E, EC235C, EC235D, EC2...

VOE14601683 Sealing

EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, FC2121C

VOE14514937 Sealing

EC135B, EC140, EC140B, EC160B, EC180B, EC200B, EC210, EC210B, EC240B, EC240C, EC290, EC290B, EC290C, FC2924C, FC3329C

VOE20459005 Sealing ring

EC210B, EC240B, EC290B

VOE21376801 Sealing plate

EC140E, EC160E, EC180E, EC220E, EC250E, EC300E, ECR235E, EW140E, EW160E, EW180E, EWR150E, G900C, L110H, L120H, L60H, L70H, L90H, PL3005E, SD115B/SD135B, SD160B

VOE25392061 Sealing

EC140E, EC220E, EC60E, EC750D, EC750E, EC80D, EC950E, ECR145E, ECR235E, EW140E, EW160E, EW180E, EW60E, EWR150E, L45H, L50H, PL3005E

VOE17472506 Sealing kit

EW140C, EW160, EW160B, EW160C, EW160D, EW180B, EW180C, EW180D, EW200B, EW210D, EW230C

VOE14674063 Sealing kit

EC200D, EC210D, EC220D, EC220E

VOE14718261 Sealing kit

EC220D, EC220E, EC250D, EC250E

VOE14685001 Sealing plate

EC200D, EC210D

VOE14699191 Sealing kit

ECR235E

VOE14589708 Sealing kit

EW140C, EW140D, EWR150E

SA9568-01250 Sealing

Volvo.Heavy

VOE14512071 Sealing

EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, EC235C, EC235D, EW180B, EW180C, EW180D, EW180E, EW200B, EW210D, EW230C, FB2800C, FBR2800C, FC2121C, FC2421C

VOE14550074 Sealing Kit

EC140C, EC140D, EC140E, EC160C, EC160D, EC160E, EC180C, EC180D, EC180E, EC210C, EC220D, EC220E, EC235C, EC235D, EC250D, EC250E, ECR145C, ECR145D, ECR145E, ECR235C, ECR235D, ECR235E

VOE14512073 Sealing

EC290B, EC290C, EC300D, EC300E, EC350D, EW180B, EW180C, EW180D, EW200B

VOE11102073 Sealing ring

A35D, A40, A40 VOLVO BM, A40D, T450D

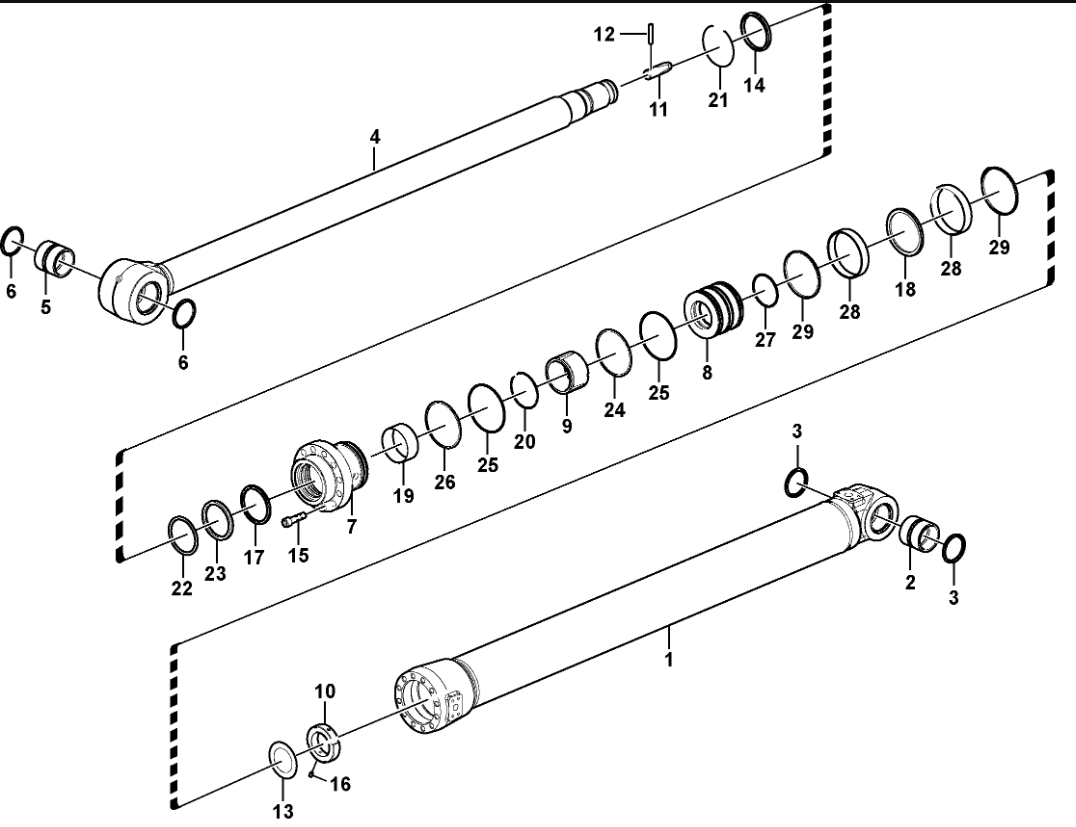

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	VOE14534532	[1]	Dipper arm cylinder
	VOE14554978		Cylinder
1		[1]	Tube
			Tube
2	VOE14517941	[1]	Bushing
	VOE14511731		Bushing
3	VOE14560205	[2]	Seal
4	VOE14550438	[1]	Rod
	VOE14558493		Rod
5	VOE14517941	[1]	Bushing
	VOE14511731		Bushing
6	VOE14560205	[2]	Seal
7	VOE14659602	[1]	Piston rod guide
8	VOE14535043	[1]	Piston
9	VOE14522909	[1]	Cushion
10	VOE14534347	[1]	Lock nut
11	SA1146-01410	[1]	Cushion
12	SA1146-02880	[1]	Pin
13	VOE14530666	[1]	Washer
14	SA9564-20950	[1]	Seal
15	VOE13949445	[12]	Screw
16	VOE14535763	[1]	Screw
17	SA1146-08110	[1]	Seal
18	VOE14510827	[1]	Seal
19	SA9612-09540	[1]	Bearing
20	SA9557-08500	[1]	Retaining ring
21	SA9556-09500	[1]	Retaining ring
22	SA9567-20950	[1]	Back-up ring
23	SA9563-20950	[1]	Seal
24	SA9566-31250	[1]	Back-up ring
25	VOE990648	[2]	O-ring
26	SA9566-11250	[1]	Back-up ring
27	VOE990638	[1]	O-ring
28	SA9565-11350	[2]	Wear ring
29	SA9568-01350	[2]	Seal
100	VOE14589131	[1]	Sealing kit

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
