• 207-27-71161 2072771161 Carrier KOMATSU Excavator Spare Parts For PC300-8

• Specification

Name	Carrier
Parts No	207-27-71161 2072771161
Machine Model	PC220LL PC270 PC290 PC300 PC300HD
Category	Travel Motor
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other carrier parts fit for KOMATSU machine

203-30-00231 CARRIER ROLLER

BR200T, BZ200, BZ210, PC100, PC120, PC120SC, PC128US, PC128UU, PC130, PC138, PC138US, PC70, WINDOW

TZ600D1107-011 CARRIER, ASSEMBLY

PC130, PC138, PC138US, WINDOW

203-30-00330 CARRIER ROLLER, ASSEMBLY

PC138, PC138US

203-26-61120 CARRIER

BM020C, BR480RG, BR550JG, CD110R, PC100, PC100L, PC100N, PC120, PC120SC, PC128US, PC128UU, PC130, PC138, PC138US, PC150LGP, PC158, PC158US, PW128UU, PW130, PW130ES, PW148, WINDOW

203-26-61130 CARRIER

BM020C, BR480RG, BR550JG, CD110R, PC100, PC100L, PC100N, PC120, PC120SC, PC128US, PC128UU, PC130, PC138, PC138US, PC150LGP, PC158, PC158US, PW128UU, PW130, PW130ES, PW148, WINDOW

TZ600D1107-01 Carrier Assembly

PC118MR, PC130, PC138, PC138US, WINDOW

226-30-13601 CARRIER ROLLER, ASSEMBLY

PC118MR

20N-60-42400 CARRIER ASS'Y

PC10, PC10N, PC12UU, PC15, PC15T

20N-60-42300 CARRIER ASS'Y

PC10, PC12UU, PC15, PC15T

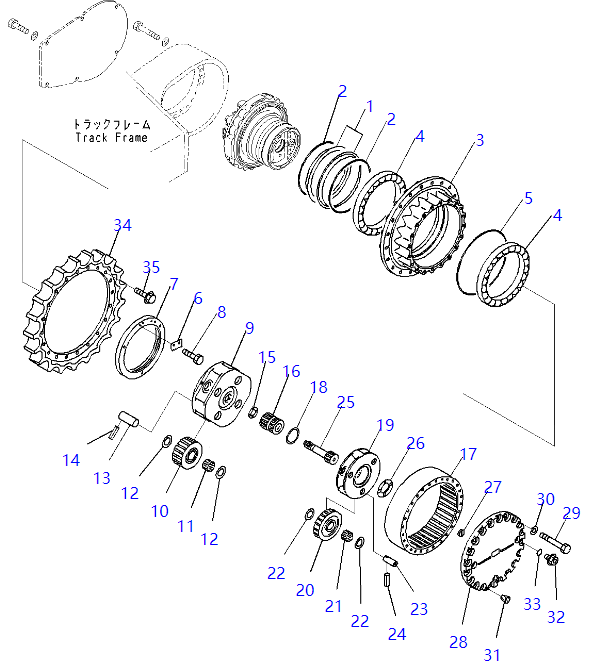

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	207-27-00560	[1]	Final Drive Assembly Komatsu China
			["SN: 63595-UP"] |$0.
	207-27-00310	[1]	Floating Seal Assembly Komatsu OEM	3.72 kg.
			["SN: 63595-UP"] analogs:["1702700025", "1702700024", "4233300021"] |$1.
3.	207-27-71710	[1]	Hub Komatsu China
			["SN: 63595-UP"]
4.	207-27-71330	[2]	Bearing Komatsu OEM	7 kg.
			["SN: 63595-UP"]
5.	207-27-52350	[1]	O-ring Komatsu China	0.02 kg.
			["SN: 63595-UP"]
6.	207-27-71370	[1]	Lock Komatsu	0.075 kg.
			["SN: 63595-UP"]
7.	207-27-71360	[1]	Nut, Lock Komatsu	5.1 kg.
			["SN: 63595-UP"]
8.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 63595-UP"] analogs:["801014093", "0101051020", "801015108"]
9.	207-27-71320	[1]	Carrier Komatsu OEM	38.5 kg.
			["SN: 63595-UP"]
10.	207-27-71140	[4]	Gear Komatsu OEM	8.28 kg.
			["SN: 63595-UP"]
11.	207-27-63210	[4]	Bearing Komatsu OEM	0.6 kg.
			["SN: 63595-UP"]
12.	20Y-27-21250	[8]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 63595-UP"]
13.	207-27-63230	[4]	Pin Komatsu OEM	1.68 kg.
			["SN: 63595-UP"]
14.	20Y-26-21330	[4]	Pin Komatsu China	0.1 kg.
			["SN: 63595-UP"]
15.	20Y-27-13310	[1]	Washer, Thrust Komatsu China	0.08 kg.
			["SN: 63595-UP"]
16.	207-27-71130	[1]	Gear Komatsu OEM	3.14 kg.
			["SN: 63595-UP"]
17.	207-27-71152	[1]	Gear, Ring Komatsu OEM	55.8 kg.
			["SN: 63595-UP"] analogs:["2072771151"]
18.	207-27-71250	[1]	Washer Komatsu OEM	0.05 kg.
			["SN: 63595-UP"]
19.	207-27-71161	[1]	Carrier Komatsu OEM	9.4 kg.
			["SN: 63595-UP"]
20.	207-27-71121	[3]	Gear Komatsu OEM	4.83 kg.
			["SN: 63595-UP"]
21.	207-27-61220	[3]	Bearing Komatsu China	0.74 kg.
			["SN: 63595-UP"]
22.	20Y-27-21240	[6]	Washer, Thrust Komatsu China	0.02 kg.
			["SN: 63595-UP"]
23.	207-27-61240	[3]	Pin Komatsu China	2.49 kg.
			["SN: 63595-UP"]
24.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 63595-UP"]
25.	207-27-71352	[1]	Shaft Komatsu China	2.1 kg.
			["SN: 63595-UP"]
26.	20Y-27-11250	[1]	Spacer Komatsu OEM	0.044 kg.
			["SN: 63595-UP"] analogs:["2052771570"]
27.	20Y-27-22250	[1]	Button Komatsu China	0.05 kg.
			["SN: 63595-UP"]
28.	207-27-71341	[1]	Cover Komatsu	55.32 kg.
			["SN: 63595-UP"] analogs:["2072771340"]
29.	01011-61880	[20]	Bolt Komatsu	0.402 kg.
			["SN: 63595-UP"]
30.	01643-31845	[20]	Washer Komatsu China	0.02 kg.
			["SN: 63595-UP"] analogs:["0164321845", "R0164331845"]
31.	07049-01215	[2]	Plug Komatsu	0.001 kg.
			["SN: 63595-UP"]
32.	07044-12412	[3]	Plug Komatsu	0.09 kg.
			["SN: 63595-UP"] analogs:["0704402412", "R0704412412"]
33.	07002-02434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 63595-UP"] analogs:["0700212434", "0700213434"]
34.	207-27-71460	[1]	Sprocket Komatsu China	66.7 kg.
			["SN: 63595-UP"] analogs:["2072761210"]
35.	207-27-51311	[20]	Bolt Komatsu China	0.222 kg.
			["SN: 63595-UP"] analogs:["2072751310", "20727K1120", "20727K1130"]
