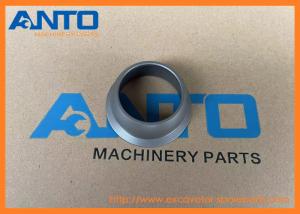

- K9004448 Ballthrust DOOSAN Excavator Travel Motor Parts Fit For DX180LC-3 DX225LC-3
| Name | Ballthrust |
| Parts No | K9004448 |
| Machine Model | DX160LC DX180LC DX180LC-3 DX210 DX225LCB |
| Category | Travel Motor |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
EXCAVATORS DX160LC DX180LC DX180LC-3 DX210 DX225LCB DX220AF DX225LC-3 DX230LC DX235LCR DX255LC-3 Doosan
- More other ball parts fit for DOOSAN machine
| K9005998 BALL |
| Doosan |
| |
| 00939847 BALL;RETAINING |
| Doosan |
| |
| 06.31641-0429 BALL;BY-PASS |
| Doosan |
| |
| S6250161 BALL;STEEL |
| Doosan |
| |
| 1.148-00015 BALL;THRUST |
| Doosan |
| |
| S6250110 BALL;STEEL |
| Doosan |
| |
| 0635 460 005 BALL |
| Doosan |
| |
| 0635 460 027 BALL |
| Doosan |
| |
| 06.31641-0618 BALL;STEEL |
| Doosan |
| |
| 2.148-00001 BALL |
| Doosan |
| |
| S6250200 BALL;STELL |
| Doosan |
| |
| K9000688 BALL |
| Doosan |

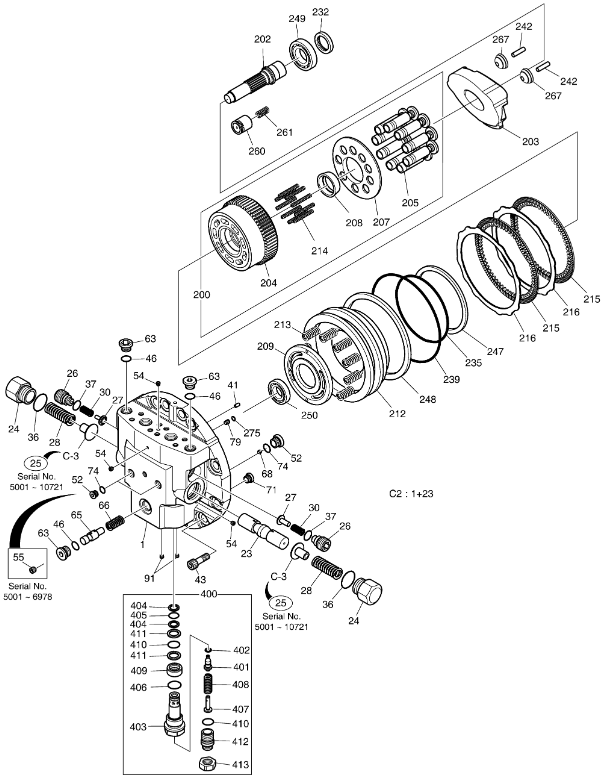

| Pos. | Part No | Qty | Parts name | Comments |
| *. | K9008310 | [1] | SEAL KIT;TRAVEL MOTOR | |
| 1 | *NA00915 | [1] | REAR FLANGE | |
| 200 | 400701-00004 | [1] | | |
| 200 | K9007407 | [1] | CYL BLOCK & PISTON KIT | 400701-00004 |
| 202 | K9007415A | [1] | | |
| 202 | K9007415 | [1] | SHAFT;DRIVE | K9007415A |
| 203 | K9007382 | [1] | PLATE;SWASH | |
| 204 | K9007397 | [1] | BLOCK;CYLINDER | |
| 205 | K9007406A | [1] | | |
| 205 | K9007406 | [1] | PISTON ASS'Y | |
| 207 | K9004447 | [1] | PLATE;RETAINER | |
| 208 | K9004448 | [1] | BALL;THRUST | |
| 209 | K9007398A | [1] | | |
| 209 | K9007398 | [1] | PLATE;TIMING | |
| 212 | K9004453 | [1] | PISTON;PARKING | |
| 213 | 1.131-00049A | [12] | SPRING | |
| 213 | 1.131-00049 | [12] | SPRING | |
| 214 | K9004449 | [1] | SPRING | |
| 215 | 412-00013 | [2] | PLATE,FRICTION | |
| 216 | 352-00014 | [2] | PLATE,SEPARATION | |
| 23 | 410207-00163 | [1] | | |
| 23 | 410207-00163A | [1] | | |
| 23 | 410207-00307 | [1] | SPOOL,MAIN | |
| 23 | K9007399 | [1] | MAIN SPOOL | |
| 232 | K9007401 | [1] | SEAL;OIL | |
| 235 | S8001801 | [1] | O-RING | |
| 239 | S8002101 | [1] | O-RING | |
| 24 | 1.181-00059 | [2] | PLUG;FOR MAIN | |
| 242 | 1.123-00053 | [4] | PIN,PARALLEL | |
| 247 | S8061800 | [1] | RING;BACK UP | |
| 248 | S8062100 | [1] | RING;BACK UP | |
| 249 | K9007400 | [1] | BEARING;BALL | |
| 25 | 110956-00071 | [2] | | |
| 250 | 1.109-00026 | [1] | BEARING;BALL | |
| 26 | 1.181-00067 | [2] | PLUG;CHECK | |
| 260 | 130602-00200 | [1] | | |
| 260 | 1.409-00180 | [1] | PISTON KIT;2 SPEED | |
| 261 | 111601-00117 | [1] | | |
| 261 | 1.131-00042 | [1] | SPRING | |
| 267 | 1.540-00006 | [2] | PIVOT | |
| 27 | 1.420-00013 | [2] | VALVE;CHECK | |
| 275 | S8000081 | [2] | O-RING | |
| 28 | 1.131-00058 | [2] | SPRING;FOR MAIN | |
| 30 | 1.129-00006 | [2] | SPRING;CHECK | |
| 36 | S8000321 | [2] | O-RING | |
| 37 | S8002731 | [2] | O-RING | |
| 400 | 410127-00058 | [2] | | |
| 400 | 410127-00058A | [2] | | 410127-00190 |
| 400 | 410127-00190 | [2] | VALVE ASSY,RELIEF | |
| 400 | K9007413 | [2] | RELIEF VALVE ASS'Y | |
| 401 | *NA00890 | [1] | . PLUNGER | |
| 402 | 1.180-00527 | [1] | SEAL;PISTON | |
| 403 | *NA00079 | [1] | BODY | |
| 404 | S8060161 | [2] | RING;BACK-UP | |
| 405 | S8000161 | [3] | O-RING | |
| 406 | S8010291 | [1] | O-RING | |
| 407 | *NA00926 | [1] | | |
| 408 | *NA01182 | [1] | . SPRING | |
| 409 | *NA00796 | [1] | PISTON | |
| 41 | S5700891 | [1] | PIN;PARALLEL | |
| 410 | S8000221 | [2] | O-RING | |
| 411 | S8060221 | [3] | RING;BACK UP | |
| 412 | *NA00865 | [1] | PLUG,ADJUST | |
| 413 | *NA00628 | [1] | NUT,LOCK | |
| 43 | S2221471 | [12] | BOLT,SOCKET | |
| 46 | S8000181 | [2] | O-RING | |
| 52 | 2181-1890D2 | [4] | PLUG | |
| 52 | 2181-1890D2 | [2] | PLUG | |
| 54 | 181-00318 | [5] | BOLT;SOCKER | |
| 55 | 2181-1116D2 | [2] | PLUG | |
| 63 | 2181-1890D4 | [2] | PLUG | |
| 65 | 1.424-00041 | [1] | SPOOL;2 SPEED | |
| 66 | 111601-00354 | [1] | SPRING | |
| 66 | 1.131-00001 | [1] | SPRING | 111601-00354 |
| 68 | S6250182 | [2] | BALL | |
| 71 | 1.415-00005 | [1] | ORIFICE | |
| 74 | S8000111 | [4] | O-RING | |
| 74 | S8000111 | [2] | O-RING | |
| 79 | 1.471-00001A | [1] | FILTER | |
| 79 | 1.471-00001 | [1] | FILTER | |
| 91 | 2181-1116D1 | [2] | PLUG | |
| C. | 300609-00069 | [1] | | |
| C. | K9007410 | [1] | CONTROL PART ASS'Y | 300609-00069 |
| C-1. | 430215-00552 | [1] | | |
| C-1. | K9007408 | [1] | REAR FLANGE ASS'Y | |
| C-1. | K9007408A | [1] | | 430215-00552 |
| C-2. | K9007409 | [1] | REAR FLANGE KIT | |
| C-2. | K9007409A | [1] | | |
| C-3. | 110956-00060 | [2] | STOPPER | |
