• K9004447 Retainer Plate DOOSAN Excavator Travel Motor Parts Fit For DX160LC DX180LC

• Specification

Name	Retainer Plate
Parts No	K9004447
Machine Model	DX160LC DX180LC DX180LC-3 DX210 DX225LCB
Category	Travel Motor
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

EXCAVATORS DX160LC DX180LC DX180LC-3 DX210 DX225LCB DX220AF DX225LC-3 DX230LC DX235LCR DX255LC-3 Doosan

• More other plate parts fit for DOOSAN machine

K9007382 PLATE;SWASH

Doosan

K1026122A PLATE

Doosan

K1027781 PLATE

Doosan

K1012738 PLATE

Doosan

2.412-00221 PLATE;RETAINING

Doosan

2.180-01209 PLATE;BACK-UP

Doosan

K1012786A PLATE

Doosan

K1012785A PLATE

Doosan

K1026117C PLATE;FLOOR(REAR)

Doosan

K9006225 PLATE;RETAINER

Doosan

K1012978A PLATE

Doosan

K9007117 PLATE;CYL BLOCK STIFFENER

Doosan

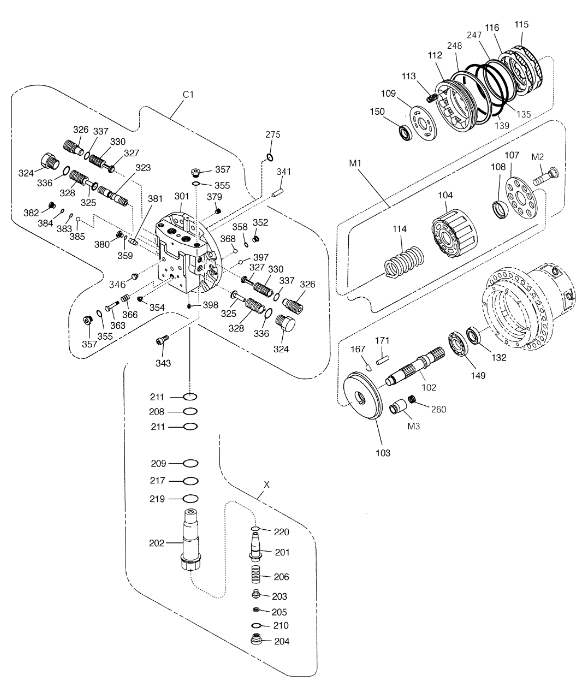

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
-.	K1017674	[2]	TRAVEL DEVICE
-.	K9004441	[1]	TRAVEL MOTOR
102	K9004450	[1]	SHAFT;MAIN
103	K9004451	[1]	PLATE;SWASH
104	K9004446	[1]	BLOCK;CYLINDER
107	K9004447	[1]	PLATE;RETAINER
108	K9004448	[1]	BALL;THRUST
109	K9004452	[1]	PLATE;TIMING
112	K9004453	[1]	PISTON;PARKING
113	1.131-00049	[12]	SPRING
114	K9004449	[9]	SPRING
115	412-00013	[2]	PLATE,FRICTION
116	352-00014	[2]	PLATE,SEPARATION
132	1.180-00521	[1]	SEAL;OIL
135	S8001801	[1]	O-RING
139	S8002101	[1]	O-RING
149	1.109-00147	[1]	BEARING;BALL
150	1.109-00026	[1]	BEARING;BALL
167	1.540-00006	[1]	PIVOT
171	1.123-00053	[2]	PIN,PARALLEL
201	*NA01288	[1]	SUPPORT
202	1.425-00004	[1]	SLEEVE
203	1.115-00010	[1]	RETAINER;SPRING
204	1.181-00063	[1]	PLUG
205	1.114-00016	[1]	SHIM
206	1.131-00050	[1]	SPRING
208	S8000161	[1]	O-RING
209	S8000221	[1]	O-RING
210	S8000181	[1]	O-RING
211	S8060161	[2]	RING;BACK-UP
217	S8060221	[1]	RING;BACK UP
219	S8010291	[1]	O-RING
220	1.180-00527	[1]	SEAL;PISTON
247	S8061800	[1]	RING;BACK UP
248	S8062100	[1]	RING;BACK UP
260	1.131-00042	[1]	SPRING
275	S8000081	[2]	O-RING
301	*NA00460	[1]	. FLANGE;REAR
323	1.424-00024	[1]	SPOOL
324	1.181-00059	[2]	PLUG;FOR MAIN
325	1.416-00009	[2]	STOPPER
326	1.181-00067	[2]	PLUG;CHECK
327	1.420-00013	[2]	VALVE;CHECK
328	1.131-00058	[2]	SPRING;FOR MAIN
330	1.129-00006	[2]	SPRING;CHECK
336	S8000321	[2]	O-RING
337	S8002731	[2]	O-RING
341	S5700891	[1]	PIN;PARALLEL
343	S2221471	[12]	BOLT,SOCKET
346	2181-1116D2	[2]	PLUG
352	2181-1890D2	[2]	PLUG
354	181-00318	[7]	BOLT;SOCKER
355	S8000181	[2]	O-RING
357	2181-1890D4	[2]	PLUG
358	S8000111	[2]	O-RING
359	S8000141	[2]	O-RING
363	1.424-00041	[1]	SPOOL;2 SPEED
366	1.131-00001	[1]	SPRING
368	S6250182	[2]	BALL
379	1.471-00001	[1]	FILTER
380	2181-1890D3	[2]	PLUG
381	2.409-00058	[1]	PISTON
382	1.181-00062	[2]	PLUG
383	S8000051	[2]	O-RING
384	S8000081	[2]	O-RING
385	1.148-00012	[2]	BALL;STEEL
397	1.415-00005	[1]	ORIFICE
398	2181-1116D1	[4]	PLUG
900	K9004604	[1]	SEAL KIT;TRAVEL MOTOR
901	1.180-00465	[1]	SEAL KIT;RELIEF VALVE
C1.	K9004442	[1]	REAR FLANGE ASS'Y
C2.	K9004443	[1]	REAR FLANGE KIT
M1.	K9004444	[1]	CYL. BLOCK & PISTON KIT
M2.	K9004445	[1]	PISTON ASS'Y
M3.	1.409-00180	[1]	PISTON KIT;2 SPEED
X.	1.420-00119	[2]	RELIEF VALVE ASS'Y

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
