• 6150-21-8010 6150218010 Main Metal Assy Support For KOMATSU Excavators PC400 PC450 PC490

• ​Specification

Category	KOMATSU Excavator Spare Parts
Name	Main metal assy
Parts No	6150-21-8010 6150218010
Machine Model	PC400 PC450 PC490 PW400MH
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

BULLDOZERS D87E D87P
DIESEL GENERATORS DCA EGS240 EGS300 EGS360,380
DUMP TRUCKS HM300
ENGINES 6D125 S6D125 S6D125E SA6D117 SA6D125 SA6D125E SAA6D125E
EXCAVATORS PC400 PC450 PC490 PW400MH
WHEEL LOADERS WA450 WA470 WA480 Komatsu

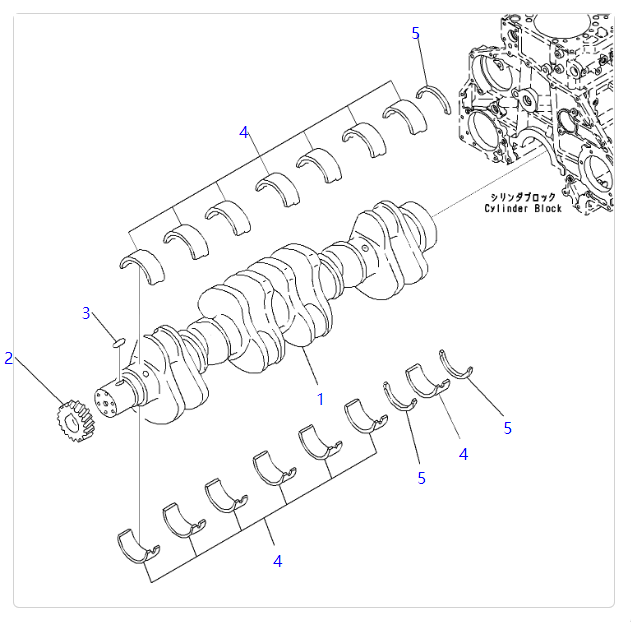

• Catalog parts list​

Pos.	Part No	Qty	Parts name	Comments
	6151-35-1010	[1]	Crankshaft Assembly Komatsu China	117 kg.
			["SN: 560004-UP"] analogs:["6150311010", "6150311110", "6150311020", "6151311010", "6151311110", "6252311010"] |1.
1.	6151-31-1110	[1]	Crankshaft Komatsu China	117 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6151351010", "6150311010", "6150311110", "6150311020", "6151311010", "6252311010"]
2.	6150-35-1120	[1]	Gear Komatsu	0.7 kg.
			["SN: 560004-UP"] analogs:["6150311121"]
3.	6150-31-1130	[1]	Key Komatsu	0.02 kg.
			["SN: 560004-UP"]
4	6150-21-8010	[7]	Main Metal Assembly, Standard Komatsu OEM	0.306 kg.
			["SN: 560004-UP"] analogs:["6150218110", "6150218140", "6150218120"]
	6150-21-8130	[1]	Metal, Upper Standard Komatsu OEM	0.306 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150218010", "6150218110", "6150218140", "6150218120"] |4.
	6150-21-8140	[1]	Metal, Lower Standard Komatsu OEM	0.306 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150218010", "6150218110", "6150218120"] |4.
	6150-29-8010	[7]	Main Metal Assembly, Undersize 0.25mm Komatsu OEM	2.3 kg.
			["SN: 560004-UP"] |4.
	6150-29-8130	[1]	Metal, Upper Undersize 0.25mm Komatsu OEM	2.3 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150298010"] |4.
	6150-29-8140	[1]	Metal, Lower Undersize 0.25mm Komatsu OEM	2.3 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150298010"] |4.
	6150-28-8010	[7]	Main Metal Assembly, Undersize 0.50mm Komatsu OEM	0.332 kg.
			["SN: 560004-UP"] |4.
	6150-28-8130	[1]	Metal, Upper Undersize 0.50mm Komatsu OEM	0.332 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150288010"] |4.
	6150-28-8140	[1]	Metal, Lower Undersize 0.50mm Komatsu OEM	0.332 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150288010"] |4.
	6150-27-8010	[7]	Main Metal Assembly, Undersize 0.75mm Komatsu	0.342 kg.
			["SN: 560004-UP"] |4.
	6150-27-8130	[1]	Metal, Upper Undersize 0.75mm Komatsu	0.342 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150278010"] |4.
	6150-27-8140	[1]	Metal, Lower Undersize 0.75mm Komatsu	0.342 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150278010"] |4.
	6150-26-8010	[7]	Main Metal Assembly, Undersize 1.00mm Komatsu	0.348 kg.
			["SN: 560004-UP"] analogs:["6150268130"] |4.
	6150-26-8130	[1]	Metal, Upper Undersize 1.00mm Komatsu	0.348 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150268010"] |4.
	6150-26-8140	[1]	Metal, Lower Undersize 1.00mm Komatsu	0.348 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150268130", "6150268010"] |4.
5	6150-21-8050	[1]	Metal Assembly, Thrust Standard Komatsu OEM	0.172 kg.
			["SN: 560004-UP"]
	6150-21-8210	[3]	Metal, Thrust Standard Komatsu China
			["SN: 560004-UP", "SCC: C1"] |5.
	6150-29-8050	[1]	Metal Assembly, Thrust Oversize 0.25mm Komatsu OEM	0.18 kg.
			["SN: 560004-UP"] |5.
	6150-29-8210	[3]	Metal, Thrust Oversize 0.25mm Komatsu OEM	0.18 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6150298050"] |5.
	6150-28-8050	[1]	Metal Assembly, Thrust Oversize 0.50mm Komatsu OEM	0.185 kg.
			["SN: 560004-UP"] |5.
	6150-28-8210	[3]	Metal, Thrust Oversize 0.50mm Komatsu China
			["SN: 560004-UP", "SCC: C1"] |5.
	6150-27-8050	[1]	Metal Assembly, Thrust Oversize 0.75mm Komatsu	0.19 kg.
			["SN: 560004-UP"] |5.
	6150-27-8210	[3]	Metal, Thrust Oversize 0.75mm Komatsu China
			["SN: 560004-UP", "SCC: C1"] |5.
	6150-26-8050	[1]	Metal Assembly, Thrust Oversize 1.00mm Komatsu OEM	0.19 kg.
			["SN: 560004-UP"] |5.
	6150-26-8210	[3]	Metal, Thrust Oversize 1.00mm Komatsu China
			["SN: 560004-UP", "SCC: C1"] |5.

​

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
