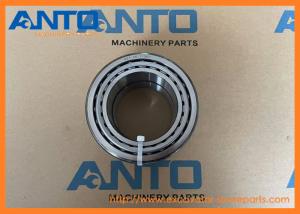

• 421-46-11361 4214611361 Bearing Support For KOMATSU Wheel Loaders 538 542 545 WA350 WA380

• ​Specification

Category	KOMATSU wheel loaders bearing
Name	Bearing
Parts No	421-46-11361 4214611361
Machine Model	538 542 545 WA350 WA380 WA380Z WA400 WA420 WA430 WA450 WA450L WA470 WA480
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

COMPACTORS WF450 WF450T
DUMP TRUCKS HM250 HM300 HM300TN
GRADERS GD555 GD655 GD675 GD755 GH320
WHEEL LOADERS 538 542 545 WA350 WA380 WA380Z WA400 WA420 WA430 WA450 WA450L WA470 WA480

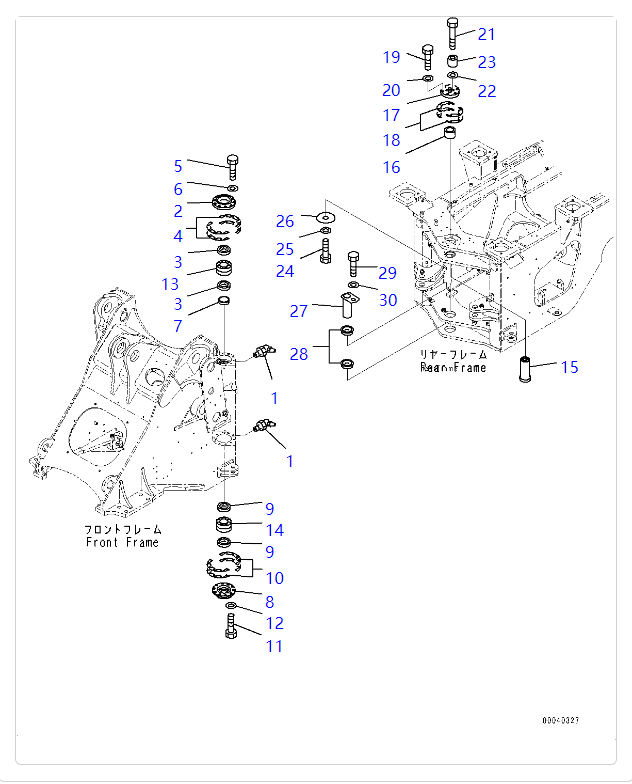

• Catalog parts list​

Pos.	Part No	Qty	Parts name	Comments
1	07020-00675	[2]	Fitting, Grease Komatsu China	0.011 kg.
			["SN: 65949-UP"] analogs:["21D0989220", "37A099G004"]
2	421-46-11710	[1]	Retainer Komatsu OEM	2.2 kg.
			["SN: 65949-UP"]
3	421-09-11310	[2]	Seal, Dust Komatsu OEM	0.37 kg.
			["SN: 65949-UP"] analogs:["4240911310"]
4	421-46-00030	[1]	Shim Assembly Komatsu China
			["SN: 65949-UP"]
4.	421-46-11372	[20]	Shim, T=0.1mm Komatsu	0.01 kg.
			["SN: 65949-UP"]
4.	421-46-11382	[4]	Shim, T=0.5mm Komatsu	0.02 kg.
			["SN: 65949-UP"]
4.	423-46-41390	[10]	Shim, T=1.0mm Komatsu China
			["SN: 65949-UP"]
5	01010-81240	[10]	Bolt Komatsu	0.052 kg.
			["SN: 65949-UP"] analogs:["801015573", "0101051240"]
6	01643-31232	[10]	Washer Komatsu	0.027 kg.
			["SN: 65949-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
7	424-46-11171	[1]	Spacer Komatsu OEM	0.4 kg.
			["SN: 65949-UP"]
8	421-46-11470	[1]	Retainer Komatsu OEM	2.2 kg.
			["SN: 65949-UP"]
9	07011-00080	[2]	Seal, Oil Komatsu	0.1 kg.
			["SN: 65949-UP"]
10	421-46-00040	[1]	Shim Assembly Komatsu China
			["SN: 65949-UP"]
11	01010-81235	[10]	Bolt Komatsu	0.048 kg.
			["SN: 65949-UP"] analogs:["0101051235", "01010E1235", "801015136"]
13	421-46-11361	[1]	Bearing Komatsu OEM	3.71 kg.
			["SN: 65949-UP"]
15	424-46-11183	[1]	Pin Komatsu	7.27 kg.
			["SN: 65949-UP"]
16	424-46-11160	[1]	Spacer Komatsu OEM	0.9 kg.
			["SN: 65949-UP"]
17	421-46-11421	[1]	Cover Komatsu OEM	3.5 kg.
			["SN: 65949-UP"]
18	421-46-00050	[1]	Shim Assembly Komatsu	0.375 kg.
			["SN: 65949-UP"]
18.	421-46-11431	[10]	Shim, T=0.2mm Komatsu	0.06 kg.
			["SN: 65949-UP"]
18.	421-46-11441	[8]	Shim, T=0.5mm Komatsu	0.2 kg.
			["SN: 65949-UP"]
18.	421-46-11451	[4]	Shim, T=1.0mm Komatsu	1 kg.
			["SN: 65949-UP"]
19	01010-81250	[6]	Bolt Komatsu	0.061 kg.
			["SN: 65949-UP"] analogs:["0101051250"]
21	01011-61625	[4]	Bolt Komatsu	0.227 kg.
			["SN: 65949-UP"] analogs:["0101131625", "0101181625"]
22	01643-31645	[4]	Washer Komatsu	0.072 kg.
			["SN: 65949-UP"] analogs:["802170005", "0164301645"]
23	423-46-41430	[4]	Spacer Komatsu China
			["SN: 65949-UP"]
24	01010-81630	[1]	Bolt Komatsu	0.081 kg.
			["SN: 65949-UP"] analogs:["0101061630", "0101051630", "0101031630"]
26	419-70-11340	[1]	Plate Komatsu	0.35 kg.
			["SN: 65949-UP"]
27	423-46-41190	[1]	Pin Komatsu	9.29 kg.
			["SN: 66038-UP"] analogs:["4214611461"]
27	421-46-11462	[1]	Pin Komatsu	9.5 kg.
			["SN: 65949-66037", "SCC: B1"]
28	423-46-42330	[2]	Bushing Komatsu China
			["SN: 66088-UP"]
28	421-46-12331	[2]	Bushing Komatsu OEM	0.52 kg.
			["SN: 65949-66087", "SCC: A2"]
29	01010-81625	[1]	Bolt Komatsu	0.073 kg.
			["SN: 65949-UP"] analogs:["0101061625"]
30	421-70-11280	[1]	Washer Komatsu	0.072 kg.
			["SN: 65949-UP"]

​

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
