• 21Q6-18202 Wiring Harness HYUNDAI Excavator Spare Parts Fitting For R220LC-9S

• Specification

Name	Wiring Harness
Parts No	21Q6-18202
Machine Model	R210LC-9BC R220LC-9S
Category	Engine Electric
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other harness parts fit for HYUNDAI machine

21Q9-10207 HARNESS ENGINE

R320LC9

21QA-10110 HARNESS-FRAME

R360LC9, R380LC9DM, R430LC9

21QA-11104 HARNESS-FRAME

R360LC9, R430LC9

21QA-10602 HARNESS-ENGINE

R360LC9, R380LC9DM, R380LC9MH, R430LC9

21QA-10800 HARNESS-ENGINE

R360LC9, R430LC9

21QA-10801 HARNESS-ENGINE

R360LC9, R430LC9

21QB-10109 HARNESS-FRAME

R480LC9, R520LC9

21QB-20500 HARNESS-ENGINE

R480LC9, R520LC9

21QB-20501 HARNESS-ENGINE

R480LC9, R520LC9

21QD-20701 HARNESS-BOOM

R700LC9, R800LC-9

21QD-10106 HARNESS-FRAME

R800LC-9

21QD-10107 HARNESS-FRAME

R800LC-9

21N8-10092 HARNESS-WIPER

HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R160LC9, R160LC9...

21Q6-10704 HARNESS-CAB

HX180L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9B...

21QE-11101 HARNESS-PUMP PS

R1200-9

21QE-10202 HARNESS-ENGINE

R1200-9

21QE-10302 HARNESS-BOOM

R1200-9

21QE-10400 HARNESS-CAMERA

R1200-9

21QE-11300 HARNESS-RR WORK LAMP

R1200-9

21QE-10105 HARNESS-FRAME

R1200-9

21QE-10102 HARNESS-FRAME

R1200-9

21QE-94160 HARNESS PRE HEAT

R1200-9

21S7-30053 HARNESS FRAME

HSL850-7A

21S7-30052 HARNESS FRAME

HSL850-7A

21Q6-10504 HARNESS-LH CONSOLE

HX180L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140LC9V, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R220LC9A, R220NLC9A, R250LC9, R250LC9A, R260L...

21Q6-10604 HARNESS-RH CONSOLE

HX180L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9S, R160LC9, R160LC9A, R160LC9S, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R21...

4096485 HARNESS-WIRING

R1200-9

21Q4-60603 HARNESS-FRAME

R140LC9

21Q4-60604 HARNESS-FRAME

R140LC9

21Q4-60605 HARNESS-FRAME

R140LC9

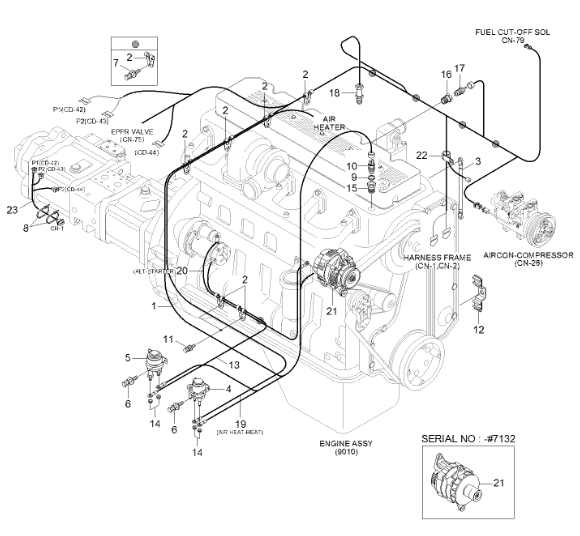

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	21Q6-18200	[1]	HARNESS-ENGINE	CLUSTER TYPE 1
1	21Q6-18201	[1]	HARNESS-ENGINE	CLUSTER TYPE 1
1	21Q6-18202	[1]	HARNESS-ENGINE	CLUSTER TYPE 1
1	21Q6-16500	[1]	HARNESS-ENGINE	CLUSTER TYPE 2
1	21Q6-16501	[1]	HARNESS-ENGINE	CLUSTER TYPE 2
1-1.	21Q8-14600	[1]	RESISTOR	NOT SHOWN
2	21E9-00170	[13]	CLIP-HARNESS
3	21EH-30720	[1]	STRAP-EARTH
4	21N8-42050	[1]	RELAY-HEATER
5	21N6-30120	[1]	RELAY-START
6	S035-061526	[4]	BOLT-W/WASHER
7	S037-122526	[7]	BOLT-W/WASHER
8	S552-050203	[15]	CLAMP-BAND
9	21EA-50260	[1]	PACKING-TEMP SW
10	21EN-40100	[1]	SENDER-TEMP
11	S035-082026	[2]	BOLT-W/WASHER
12	21N4-01130	[1]	PLATE-CLIP
13	21N8-40071	[1]	HARNESS-RELAY
14	S285-06100B	[4]	NUT-FLANGED
15	21EA-50171	[1]	FITTING-TEMP SW
16	21N7-10070	[1]	ADAPTER-OIL PRESSURE
16-2.	21EN-00520	[1]	O-RING	NOT SHOWN
17	21E3-5001	[1]	SWITCH-ENG OIL PRESS
18	21Q6-15800	[1]	SENSOR-SPEED
18	21E3-0042	[1]	SENSOR-SPEED
18	21Q6-15800	[1]	SENSOR-SPEED
19	21N6-21240	[1]	CABLE(AIR HEAT-HEAT RY)
20	21N6-01511	[1]	CABLE(ALT-STARTER)
21	21Q6-41000-K	[1]	ALTERNATOR KIT	W/O PULLEY
21	21Q6-42001	[1]	ALTERNATOR ASSY	W/ PULLEY
21-1.	21Q6-41000	[1]	ALTERNATOR ASSY	NOT SHOWN
21-2.	21N8-43000	[1]	HARNESS-ALTERNATOR	NOT SHOWN
21	21Q6-42001	[1]	ALTERNATOR ASSY	W/ PULLEY
22	31L7-10200	[1]	CLAMP-TUBE
23	21Q6-16600	[1]	HARNESS-PUMP PS
24	21Q6-10850	[1]	COVER-STARTER RELAY
25	21Q6-10950	[1]	COVER-PREHEAT RELAY

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
